SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

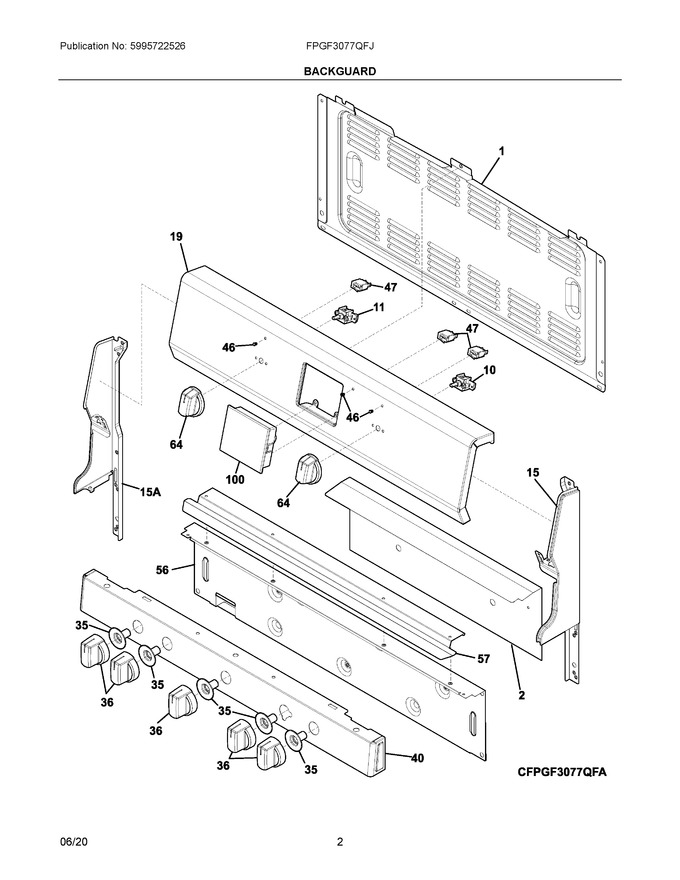

1	316281802		Shield, Backguard, Rear Wall   (Replaces: 316281801)				$ 64.04
2	316497602		Shield, Backguard, Inner		Appelez-nous	-
10	808843102		Potentiometer, Oven Temp				$ 164.59
11	5304493649		Potentiometer, Oven Mode			Immediately	$ 79.54
15	5304493644		Cap, End, Black, Rh				$ 74.15
19	5304496878		Panel, Backguard, Stainless				$ 330.14
35	316354300		Shield, Heat, Knob				$ 11.81
36	808694401		Knob, Top Valve, Stainless				$ 164.31
40	316606117		Panel-manifold, Stainless				$ 216.38
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 18.63
47	316022508		Light/lamp, Indicator, Blue, Oven				$ 30.33
56	316230708		Shield, Backguard, Inner				$ 68.51
57	808754601		Deflector, Backguard				$ 86.63
64	809020701		Knob, Oven Control, (2)		Appelez-nous	-
100	808751524		Control Assembly, Complete, Hmi   (Replaces: 808751520)				$ 363.60
15A	5304493646		Cap, End, Black, Lh			Immediately	$ 74.15
NI	808858402		Harness, Wiring, Temp Probe, Mdl/communicatn				$ 85.95
NI	5304505678		Harness, Backguard				$ 66.94
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 11.13
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
