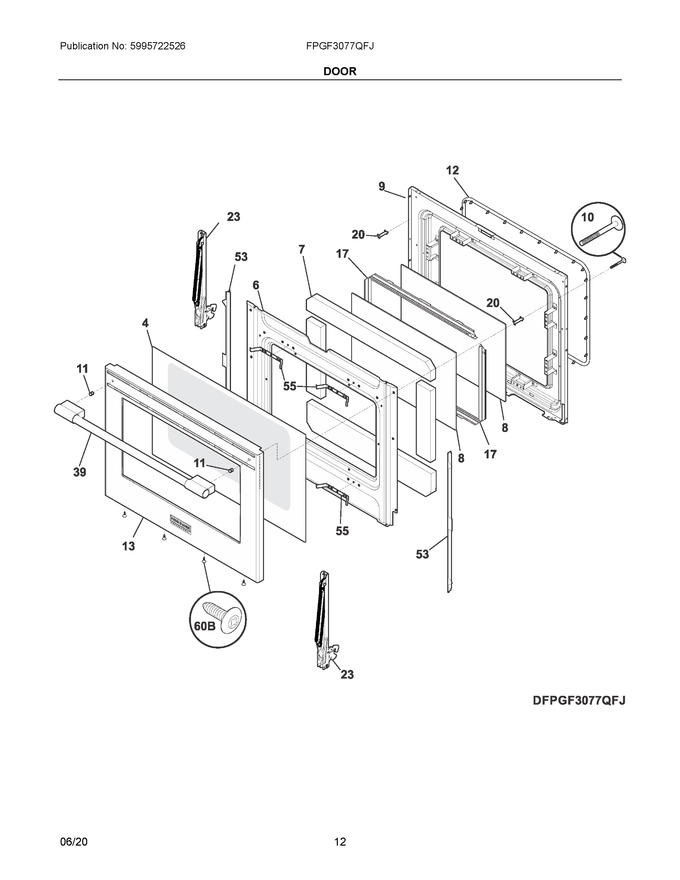

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452723		Glass, Oven Door, Black, W/foil			Immediately	$ 251.11
6	316402314		Shield, Wool		Appelez-nous	-
7	316403900		Insulation, Oven Door			Immediately	$ 80.33
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 129.94
9	316423807		Liner-oven Door				$ 190.44
10	5304507924		Screw, Handle Mtg., #10-24 X 2, (2)   (Replaces: 316439505)			Immediately	$ 18.31
11	5304494420		Nut, Hour Glass, Handle Mtg.				$ 14.18
12	5304498835		Seal, Oven Door			Immediately	$ 98.60
13	5304494421		Door Panel, Assembly, Glass/steel, Stainless, Outer, W/badge				$ 351.44
14	5304493656		Nameplate, Professional		Appelez-nous	-
17	5304504811		Spacer, Glass			Immediately	$ 27.80
20	316284102		Spacer, Door Handle, (2)			Immediately	$ 19.38
23	316575906		Hinge, Oven Door			Immediately	$ 103.65
39	5304494423		Handle, Asm			Immediately	$ 349.65
53	5304532043		Shield, Filler, Door, (2)   (Replaces: 316408101)				$ 41.57
55	316408301		Bracket, Glass Support, (4)				$ 6.74
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 14.96
NI	316483102		Label, Anti-tip				$ 3.95
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NIA	5303288572		Screw-handle Mtg		Appelez-nous	-
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75

    View Diagram in Separate Window       Print Part List
