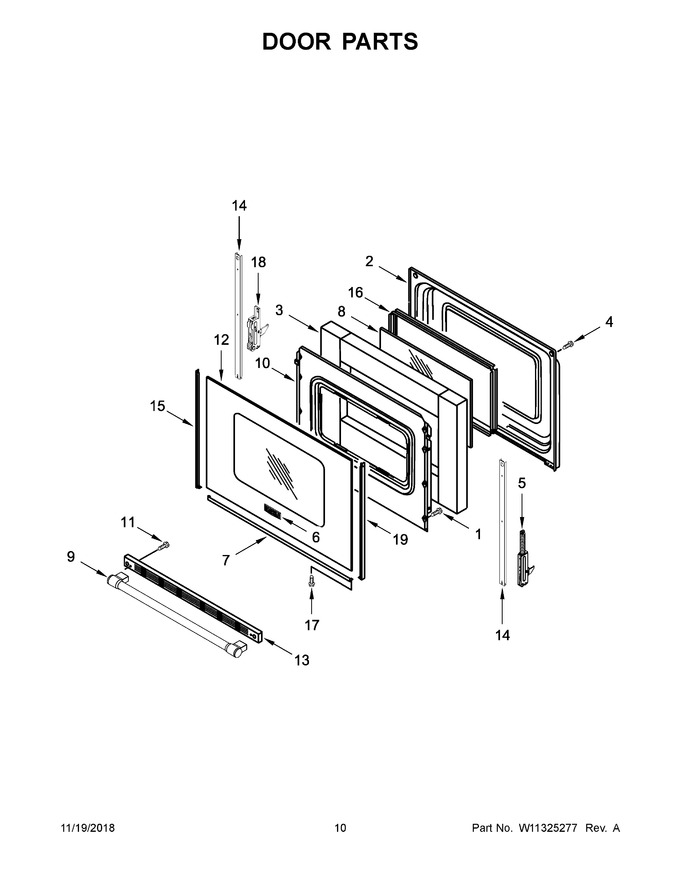

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 2 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 355.13 | ||||
| 3 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 96.54 | ||||
| 4 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.78 | ||||
| 5 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 6 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 40.34 | ||||
| 7 | WP8523177 | Trim, Lower Door (black) (Replaces: 8523177) |
|
Immediately | $ 157.96 | ||||
| 8 | W11159620 | Glass, Inner (Replaces: W11044424) |
|
Immediately | $ 177.53 | ||||
| 9 | W10920642 | Handle, Oven Door (black) (Replaces: W10889624) |
|
$ 215.45 | |||||
| 10 | W11539580 | Retainer, Insulation (Replaces: 9761357) |
|
$ 221.30 | |||||
| 11 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.88 | ||||
| 12 | W11702167 | Glass, Window (black) (Replaces: W10884159) |
|
Immediately | $ 175.93 | ||||
| 13 | W11093902 | Trim, Oven Door Vent (black) (Replaces: W10875233) |
|
$ 130.03 | |||||
| 14 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 26.36 | ||||
| 15 | W10761018 | Trim, Door (black (left)) (Replaces: W10746436) |
|
Immediately | $ 53.77 | ||||
| 16 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 84.86 | ||||
| 17 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.07 | ||||
| 18 | WPW10299226 | Hinge, Active (Replaces: W10299226) |
|
Immediately | $ 72.76 | ||||
| 19 | W10761014 | Trim, Door (black (right)) (Replaces: W10746435) |
|
Immediately | $ 72.96 | ||||
| 12A | WPW10409945 | Glass, Window (white) (Replaces: W10409945) |
|
Immediately | $ 248.79 | ||||
| 13A | W11093912 | Trim, Oven Door Vent (white) (Replaces: W10875232) |
|
$ 134.88 | |||||
| 15A | WP8523172 | Trim, Door (white (left)) (Replaces: 8523172) |
|
Immediately | $ 69.93 | ||||
| 19A | WP8523166 | Trim, Door (white (right)) (Replaces: 8523166) |
|
Immediately | $ 84.23 | ||||
| 7A | W11594186 | Trim, Lower Door (white) (Replaces: 8523175) |
|
Immediately | $ 58.45 | ||||
| 9A | W10920643 | Handle, Oven Door (white) (Replaces: W10889625) |
|
$ 215.68 |
