01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

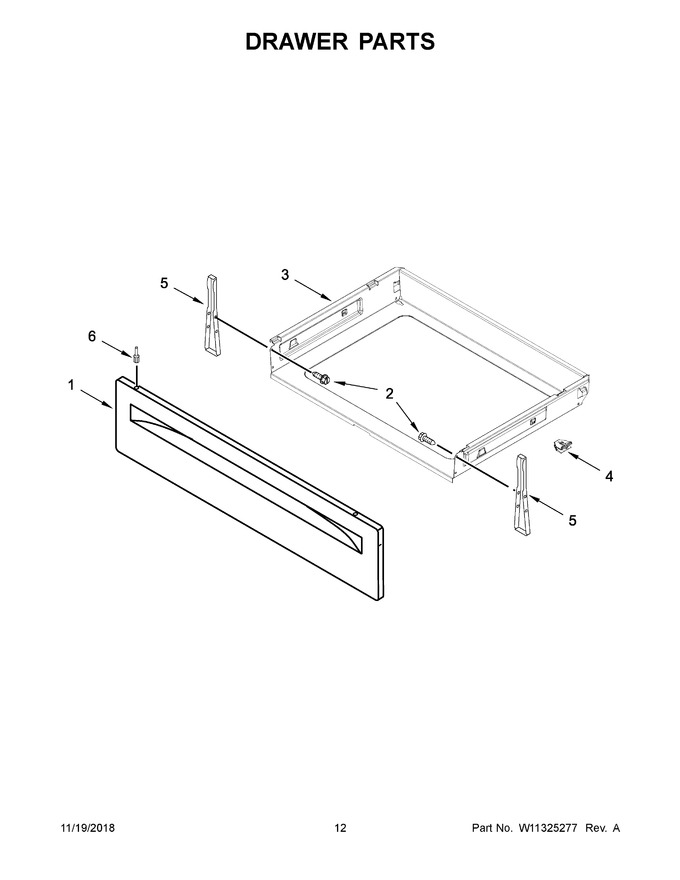

| 1 | W11230490 | Panel, Drawer (black) (Replaces: W11123976) |
|
$ 201.51 | |||||
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.19 | ||||
| 3 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 138.15 | ||||
| 4 | W10807828 | Glide, Drawer Rear (Replaces: W10674708) |
|
Immediately | $ 18.54 | ||||
| 5 | W10462911 | Bracket, Mounting |
|
- | |||||
| 6 | WP3196813 | Rivet, Push (black) (Replaces: 3196813) |
|
Immediately | $ 10.67 | ||||
| 1A | W11230486 | Panel, Drawer (white) (Replaces: W11123977) |
|
$ 201.42 | |||||
| 6A | WP3196814 | Rivet, Push (white) (Replaces: 3196814) |
|
Immediately | $ 10.54 |
