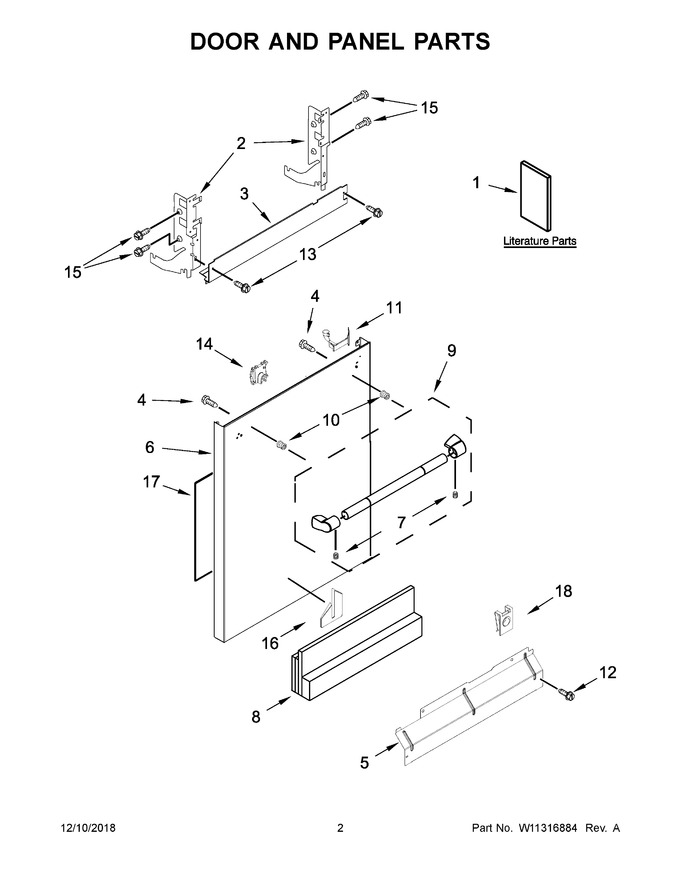

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10806906 | Installation Instructions |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 3 | W10850371 | Barrier, Vapor (Replaces: W10844384) |
|
Immediately | $ 32.88 | ||||
| 4 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 7.55 | ||||
| 5 | W11763736 | Access Panel (black) (Replaces: W10852733) |
|
Immediately | $ 42.25 | ||||
| 6 | W11320225 | Panel, Front (includes 11, 14 & 16) (stainless) (Replaces: W11246883) |
|
Immediately | $ 418.91 | ||||
| 7 | W10917698 | Set Screw (Replaces: W10687133) |
|
Immediately | $ 7.55 | ||||
| 8 | W11223838 | Insulation, Four Layer (Replaces: W10735304) |
|
Immediately | $ 43.91 | ||||
| 9 | W11320226 | Handle Assembly (stainless) (Replaces: W11213316) |
|
Immediately | $ 408.06 | ||||
| 10 | W11157086 | Stud, Mounting (Replaces: W11049903) |
|
Immediately | $ 8.87 | ||||
| 11 | W10901145 | Light Pipe (Replaces: W10854504) |
|
$ 77.23 | |||||
| 12 | WP302868 | Screw (black) (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 13 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 14 | W10692757 | Barrel Nut, Front Panel |
|
$ 16.01 | |||||
| 15 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 16 | W11320231 | Nameplate (stainless) (Replaces: W11238657) |
|
$ 110.78 | |||||
| 17 | W11126003 | Insulation, Front Panel (Replaces: W10315897) |
|
Immediately | $ 65.25 | ||||
| 18 | W10910629 | U-nut (Replaces: W10853886) |
|
$ 8.64 | |||||
| 1A | W11263946 | Energy Guide |
|
- | |||||
| 1B | W11255226 | Use & Care Guide |
|
- | |||||
| 1C | W10914074 | Tech Sheet, English |
|
- | |||||
| 1D | W10914075 | Tech Sheet, French |
|
- | |||||
| 2A | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 142.24 |
