Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11661174 Dishrack, Upper   (Replaces: W10194861) Special Order $ 197.59

2 WPW10588164 Housing, Adjuster (includes Spring And Lever) (left Hand)   (Replaces: W10588164) In-Stock Immediately $ 16.84

3 WPW10250160 Clip, Adjuster   (Replaces: W10250160) In-Stock Immediately $ 40.55

4 WPW10546503 Adjuster Assembly   (Replaces: W10546503) In-Stock Immediately $ 43.81

5 WPW10195839 Strap, Tether Adjuster   (Replaces: W10195839) In-Stock Immediately $ 30.81

6 WPW10195840 Positioner, Adjuster   (Replaces: W10195840) In-Stock Immediately $ 51.32

7 W10669975 Cupshelf Special Order $ 51.41

8 WP9741232 Screw   (Replaces: 9741232) In-Stock Immediately $ 5.07

9 WPW10250162 Cover, Adjuster   (Replaces: W10250162) In-Stock Immediately $ 7.61

10 W11259785 Track, Assembly (left Hand)   (Replaces: W11192640) In-Stock Immediately $ 78.80

11 W11320242 Handle, Dishrack Front   (Replaces: W11253315) Appelez-nous -
12 W10194862 Tine, Fold Down Special Order $ 87.03

13 W10918860 Tine Row, Fold Down Special Order $ 58.01

14 WPW10082853 Clip, Pivot   (Replaces: W10082853) In-Stock Immediately $ 5.40

15 WP8539102 Positioner, Dual Dishrack   (Replaces: 8539102) Special Order $ 103.88

16 8562026 Clip, Cupshelf Special Order $ 101.18

17 W10919676 Clip, Dispenser Guard   (Replaces: W10752617) In-Stock Immediately $ 10.00

18 WPW10309090 Screw   (Replaces: W10309090) In-Stock Immediately $ 76.86

19 W11110542 Handle, Dishrack Rear   (Replaces: W10473792) Special Order $ 129.58

20 W10875054 Retainer, Feedtube Special Order $ 26.03

21 W11240750 Basket, Utensil Row   (Replaces: W10702379) In-Stock Immediately $ 29.53

10A W11259786 Track, Assembly (right Hand)   (Replaces: W11192638) In-Stock Immediately $ 84.94

2A WPW10588165 Housing, Adjuster (includes Spring And Lever) (right Hand)   (Replaces: W10588165) In-Stock Immediately $ 54.81


    View Diagram in Separate Window     Print Icon   Print Part List

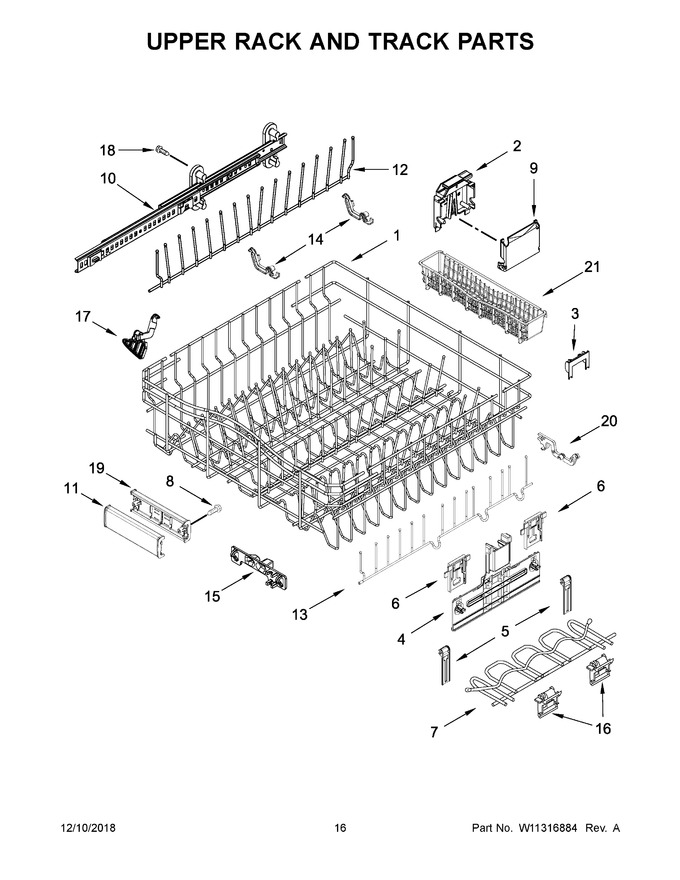

Diagram for JDTSS246GL0
