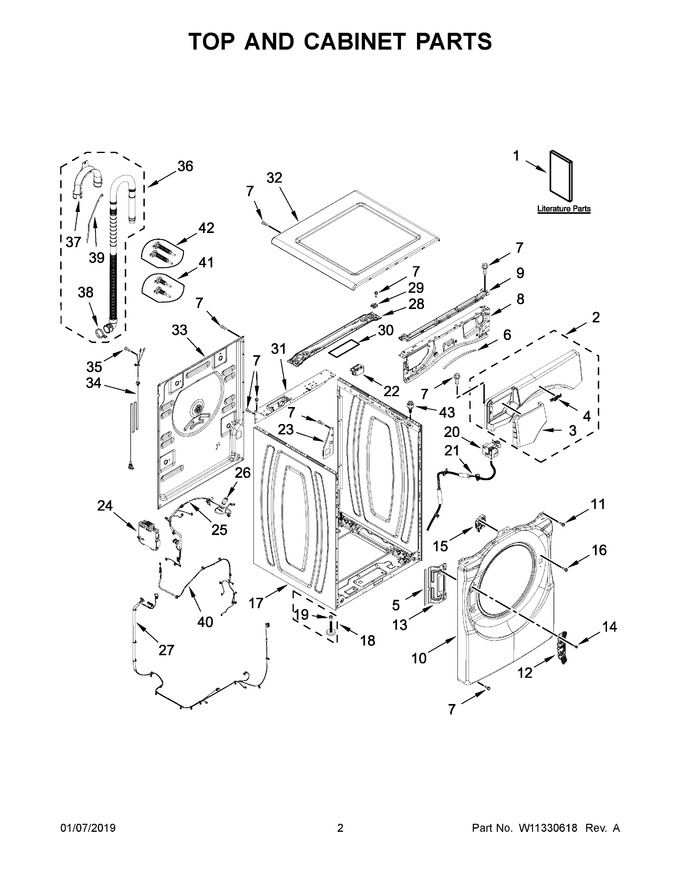

02 - Top And Cabinet Parts
03 - Hmi And Door Parts
04 - Dispenser Parts
05 - Water System Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11174361 | Use And Care Guide |
|
- | |||||
| 2 | W11328720 | Assembly, Console (chrome Shadow) (Replaces: W11110106) |
|
$ 365.91 | |||||
| 3 | W11573819 | Handle, Drawer (chrome Shadow) (Replaces: W11167034) |
|
$ 184.73 | |||||
| 4 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 83.10 | ||||
| 5 | W11292537 | Edge Guard |
|
- | |||||
| 6 | W11316770 | Edge Guard (Replaces: W10407376) |
|
- | |||||
| 7 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.02 | |||||
| 8 | W11314678 | Bracket, Console (Replaces: W10915381) |
|
$ 148.59 | |||||
| 9 | W11172160 | Channel, Water (Replaces: W10796900) |
|
$ 67.86 | |||||
| 10 | W11325564 | Panel, Front (chrome Shadow) (Replaces: W11107844) |
|
Immediately | $ 320.64 | ||||
| 11 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 7.82 | ||||
| 12 | W11310038 | Hinge Assembly (Replaces: W11114002) |
|
$ 104.17 | |||||
| 13 | W11310030 | Bracket, Hinge (Replaces: W11084215) |
|
$ 23.53 | |||||
| 14 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.03 | |||||
| 15 | W11565030 | Lock, Door (Replaces: W10804741) |
|
Immediately | $ 59.42 | ||||
| 16 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 11.56 | |||||
| 17 | W11352996 | Cabinet (chrome Shadow) (Replaces: W11084219) |
|
$ 509.92 | |||||
| 18 | W10888529 | Leveling Leg Assembly (Replaces: W10073890) |
|
Immediately | $ 13.29 | ||||
| 19 | WP3359452 | Nut, Hex (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 20 | W11316246 | Pressure Switch (Replaces: W11125159) |
|
Immediately | $ 103.04 | ||||
| 21 | W11456953 | Hose, Pressure Switch (Replaces: W11041162) |
|
Immediately | $ 33.24 | ||||
| 22 | W11316771 | Rfi Filter (Replaces: W11219530) |
|
Immediately | $ 104.66 | ||||
| 23 | W11316769 | Bracket, Drain Hose (Replaces: W11091443) |
|
Immediately | $ 21.04 | ||||
| 24 | W11322885 | Appliance Control Unit (acu) (Replaces: W11329036) |
|
- | |||||
| 25 | W11318752 | Harness, Upper (Replaces: W10919949) |
|
$ 173.24 | |||||
| 26 | W11314662 | Snap-on, Ferrite Core (Replaces: W11266154) |
|
$ 18.32 | |||||
| 27 | W11184573 | Harness, Main Lower |
|
- | |||||
| 28 | W10467484 | Brace, Top |
|
$ 42.84 | |||||
| 29 | W11846996 | Retainer, Spring (Replaces: W10245452) |
|
- | |||||
| 30 | W11314674 | Foam Pad (Replaces: W10331064) |
|
$ 18.95 | |||||
| 31 | W11353016 | Bracket, Rear (Replaces: W11026752) |
|
$ 23.73 | |||||
| 32 | WPW10460693 | Top (chrome Shadow) (Replaces: W10460693) |
|
$ 352.09 | |||||
| 33 | W11491750 | Panel, Rear (Replaces: W10916720) |
|
Immediately | $ 344.38 | ||||
| 34 | W11316254 | Cord, Power (Replaces: W10919946) |
|
Immediately | $ 128.10 | ||||
| 35 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.76 | |||||
| 36 | W11281268 | Hose, Drain (external) (Replaces: W11050506) |
|
Immediately | $ 18.26 | ||||
| 37 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 79.53 | |||||
| 38 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 39 | WPW10339879 | Cable Tie (Replaces: W10267532) |
|
$ 7.90 | |||||
| 40 | W11131792 | Harness, Ntc |
|
- | |||||
| 41 | W11316629 | Bolt, Transport (short) (Replaces: W11041011) |
|
$ 41.65 | |||||
| 42 | W11316631 | Bolt, Transport (long) (Replaces: W11041287) |
|
$ 40.52 | |||||
| 43 | W10208380 | Screw And Bushing Assembly |
|
$ 69.03 | |||||
| 1A | W11174305 | Installation Instructions |
|
- | |||||
| 1B | W11296606 | Quick Start Guide |
|
- | |||||
| 1C | W11174312 | Energy Guide |
|
- |
