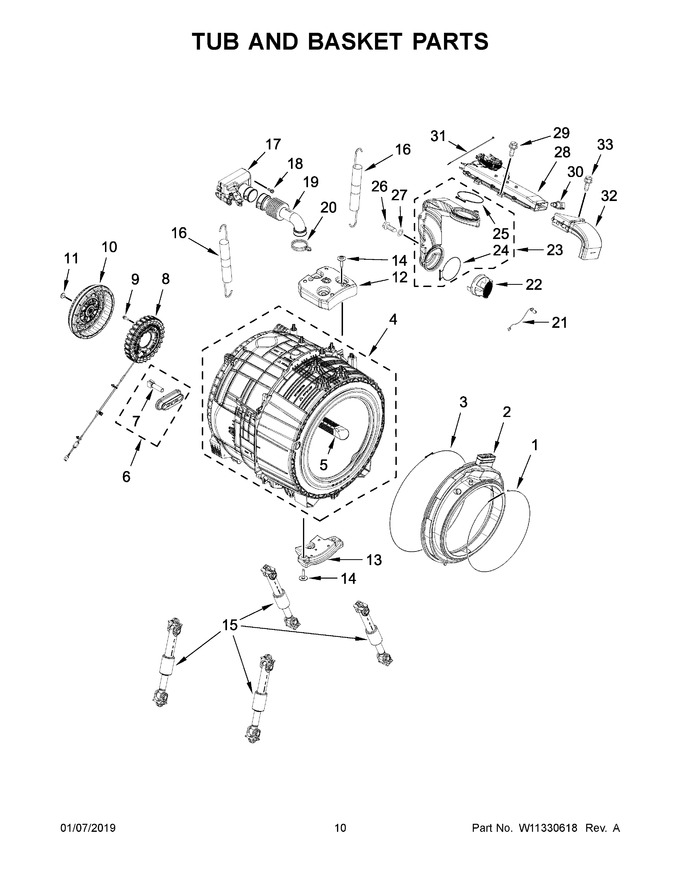

06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11266654 | Retainer, Front Panel To Bellow (Replaces: W10818945) |
|
Immediately | $ 26.94 | ||||
| 2 | W11318722 | Bellow (Replaces: W10912291) |
|
Immediately | $ 353.87 | ||||
| 3 | W11314649 | Retainer, Bellow To Tub (Replaces: W11048199) |
|
Immediately | $ 22.35 | ||||
| 4 | W11460604 | Assembly, Tub And Drum (Replaces: W10921995) |
|
$ 832.09 | |||||
| 5 | W11460395 | Baffle, Drum (Replaces: W11110198) |
|
Immediately | $ 107.17 | ||||
| 6 | W11320546 | Assembly, Ntc (Replaces: W11036313) |
|
$ 84.58 | |||||
| 7 | W11314664 | Sensor, Ntc (Replaces: W10919909) |
|
Immediately | $ 184.95 | ||||
| 8 | W11354541 | Stator, Motor (Replaces: W10921087) |
|
Immediately | $ 415.19 | ||||
| 9 | W11314661 | Screw, Stator (Replaces: W11035597) |
|
$ 14.04 | |||||
| 10 | W11314361 | Rotor, Motor (Replaces: W10916241) |
|
Immediately | $ 178.95 | ||||
| 11 | W11314657 | Screw, Rotor (Replaces: W10797525) |
|
$ 14.32 | |||||
| 12 | W11314650 | Counterweight, Top (Replaces: W11209370) |
|
Immediately | $ 155.45 | ||||
| 13 | W11607191 | Counterweight, Bottom (Replaces: W11279416) |
|
$ 121.42 | |||||
| 14 | W11314651 | Screw, Counterweight (Replaces: W11235083) |
|
Immediately | $ 14.13 | ||||
| 15 | W11316766 | Damper Assembly (Replaces: W11094464) |
|
Immediately | $ 95.95 | ||||
| 16 | W11771999 | Spring, Suspension (Replaces: W10896675) |
|
Immediately | $ 14.00 | ||||
| 17 | W11318807 | Enclosure, Vent/fan (Replaces: W10919153) |
|
$ 173.57 | |||||
| 18 | W11230114 | Screw (Replaces: 8540513) |
|
$ 13.28 | |||||
| 19 | W11316247 | Hose, Ventilation (Replaces: W11131396) |
|
Immediately | $ 33.92 | ||||
| 20 | WP371502 | Clamp, Hose (Replaces: 371507) |
|
$ 11.53 | |||||
| 21 | W11315707 | Drum Light (Replaces: W11040364) |
|
$ 114.79 | |||||
| 22 | W11318725 | Screen, Lint (Replaces: W11113078) |
|
- | |||||
| 23 | W11321013 | Assembly, Condenser Duct (Replaces: W10915359) |
|
$ 96.54 | |||||
| 24 | W11318727 | Clamp, Duct To Tub (Replaces: W11166237) |
|
$ 21.23 | |||||
| 25 | W11318728 | Clamp, Duct To Dryer (Replaces: W11166238) |
|
- | |||||
| 26 | W11116979 | Screw (Replaces: 8534044) |
|
$ 13.10 | |||||
| 27 | W11324099 | Washer (Replaces: W10919356) |
|
- | |||||
| 28 | W11759047 | Assembly, Dryer Channel (Replaces: W11035507) |
|
$ 289.65 | |||||
| 29 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 7.95 | |||||
| 30 | W11712681 | Sensor, Ntc (Replaces: W11296157) |
|
$ 12.29 | |||||
| 31 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.90 | |||||
| 32 | W11115125 | Assembly, Duct Dryer To Bellow |
|
- | |||||
| 33 | WP489128 | Screw (Replaces: W10142728) |
|
$ 10.88 |
