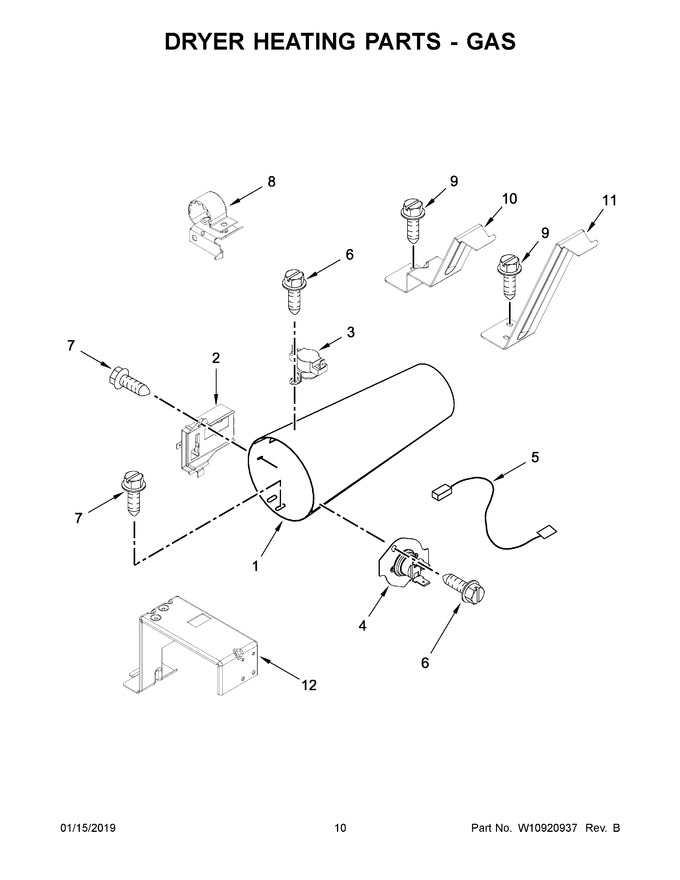

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8573824		Funnel, Burner   (Replaces: 8573824)				$ 185.29
2	WP338906		Sensor, Radiant   (Replaces: 338906)			Immediately	$ 51.91
3	W10853395		Thermostat, High-limit   (Replaces: W10206703)		Appelez-nous	-
4	WPW10181549		Cut-off, Thermal   (Replaces: W10181549)				$ 112.68
5	WP3401707		Jumper, Wire   (Replaces: 3401707)				$ 86.59
6	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
7	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
8	3978776		Bracket, Gas Pipe		Appelez-nous	-
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
10	W10198376		Bracket, Burner Pd - Coin Drop		Appelez-nous	-
11	W10181903		Bracket, Burner Pr - Card Reader   (Replaces: 8529757)		Appelez-nous	-
12	W10198343		Bracket, Support		Appelez-nous	-
