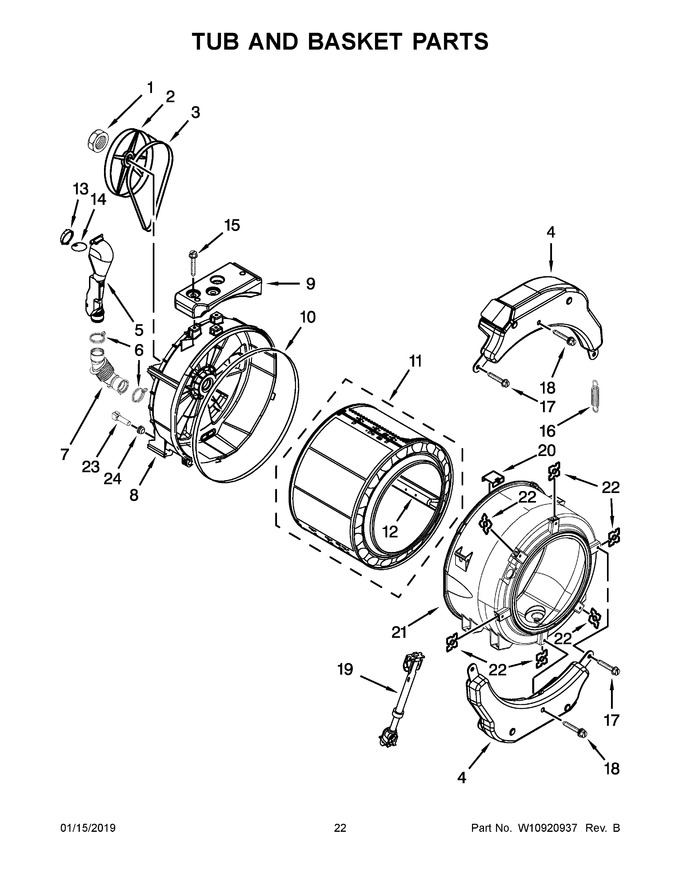

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10283361 | Nut, Pulley (Replaces: 8533999) |
|
Immediately | $ 83.07 | ||||
| 2 | WP8540088C | Pulley (Replaces: 8540088) |
|
$ 206.14 | |||||
| 3 | WPW10388418 | Belt, Drive (Replaces: W10388418) |
|
Immediately | $ 56.08 | ||||
| 4 | WPW10223198 | Counterweight, Front (Replaces: W10223198) |
|
Immediately | $ 187.86 | ||||
| 5 | W10142720 | Pipe, Ventilation |
|
$ 110.43 | |||||
| 6 | W10273034 | Clamp, Vent Hose |
|
$ 11.22 | |||||
| 7 | W11398765 | Hose, Exhaust (Replaces: W10583497) |
|
$ 31.69 | |||||
| 8 | W11036330 | Tub, Rear (Replaces: W10198137) |
|
$ 1,735.07 | |||||
| 9 | WPW10200747 | Counterweight, Rear (Replaces: W10200747) |
|
$ 169.18 | |||||
| 10 | WPW10111158 | Gasket, Tub (Replaces: 8540090) |
|
Immediately | $ 104.09 | ||||
| 11 | W11036330 | Basket, Complete (Replaces: W10198146) |
|
$ 1,735.07 | |||||
| 12 | W11700547 | Baffle, Tub (Replaces: W10118982) |
|
$ 33.47 | |||||
| 13 | W10142721 | Ventilation, Connector |
|
- | |||||
| 14 | W10142722 | Flap, Ventilation |
|
- | |||||
| 15 | W11028021 | Screw, Rear Counterweight (Replaces: W10246531) |
|
$ 9.27 | |||||
| 16 | 280159 | Spring, Suspension (Replaces: W10010360) |
|
$ 112.10 | |||||
| 17 | W11685857 | Screw (Replaces: W10094780) |
|
$ 14.81 | |||||
| 18 | WPW10259288 | Bolt Assembly, Counterweight Center Hole (Replaces: W10259288) |
|
$ 13.98 | |||||
| 19 | W10822553 | Absorber, Shock (Replaces: W10015830) |
|
Immediately | $ 83.35 | ||||
| 20 | WP8540092 | Clamp, Tub (Replaces: 8540092) |
|
$ 7.97 | |||||
| 21 | W10312454 | Tub, Front (Replaces: W10266965) |
|
$ 802.53 | |||||
| 22 | WP8182512 | Nut, Push-in (Replaces: 8540072) |
|
Immediately | $ 7.30 | ||||
| 23 | WPW10467289 | Sensor, Temperature (Replaces: W10467289) |
|
Immediately | $ 47.80 | ||||
| 24 | W11590578 | Seal, Rubber (Replaces: 8540766) |
|
Immediately | $ 8.37 |
