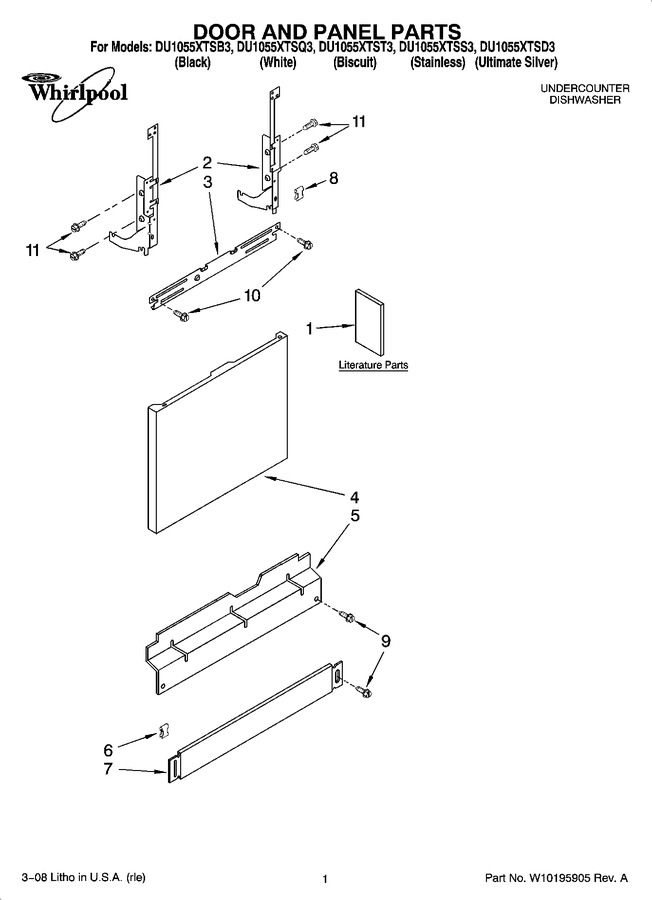

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10133161 | Guide, Use & Care (spanish) |
|
- | |||||
| 1 | 8575348 | Instructions, Installation |
|
- | |||||
| 1 | W10179462 | Energy Guide |
|
- | |||||
| 1 | W10130990 | Tech Sheet |
|
- | |||||
| 1 | W10130986 | Guide, Use & Care (english/french) |
|
- | |||||
| 2 | W11806566 | Arm, Hinge (left) (Replaces: W10143374) |
|
Immediately | $ 66.52 | ||||
| 2 | W11613572 | Arm, Hinge (right) (Replaces: W10143373) |
|
Immediately | $ 78.37 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | W10137626 | Panel Front (stainless) |
|
- | |||||
| 4 | 8269837 | Panel Front (black) |
|
$ 119.99 | |||||
| 4 | 8269838 | Panel Front (white) |
|
- | |||||
| 4 | 8269840 | Panel Front (biscuit) |
|
- | |||||
| 4 | W10127593 | Panel Front (ultimate Silver) |
|
- | |||||
| 5 | W11763736 | Access Panel Black (Replaces: 8573255) |
|
Immediately | $ 38.79 | ||||
| 5 | WPW10441007 | Access Panel (white) (Replaces: 8573256) |
|
$ 162.80 | |||||
| 5 | W10871198 | Access Panel (biscuit) (Replaces: 8573257) |
|
$ 147.59 | |||||
| 6 | WP8269016 | Clip, Grounding (Replaces: 8269016) |
|
$ 10.68 | |||||
| 7 | W10871196 | Toe Panel (includes Item 6) (black) (Replaces: 8573286) |
|
$ 165.75 | |||||
| 7 | WP8573287 | Toe Panel (includes Item 6) (white) (Replaces: 8573287) |
|
$ 165.12 | |||||
| 7 | 8573288 | Toe Panel (includes Item 6) (biscuit) |
|
$ 67.15 | |||||
| 8 | WP8269016 | Clip, Grounding (Replaces: 8269016) |
|
$ 10.68 | |||||
| 9 | WP302868 | Screw Black (Replaces: 302868) |
|
Immediately | $ 7.75 | ||||
| 9 | WP3400836 | Screw (white) (Replaces: 3400836) |
|
$ 7.53 | |||||
| 9 | 3400865 | Screw (biscuit) |
|
$ 13.40 | |||||
| 10 | WP681414 | Screw, (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 11 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.00 |
