SELECT A DIAGRAM

01 - Door And Panel Parts

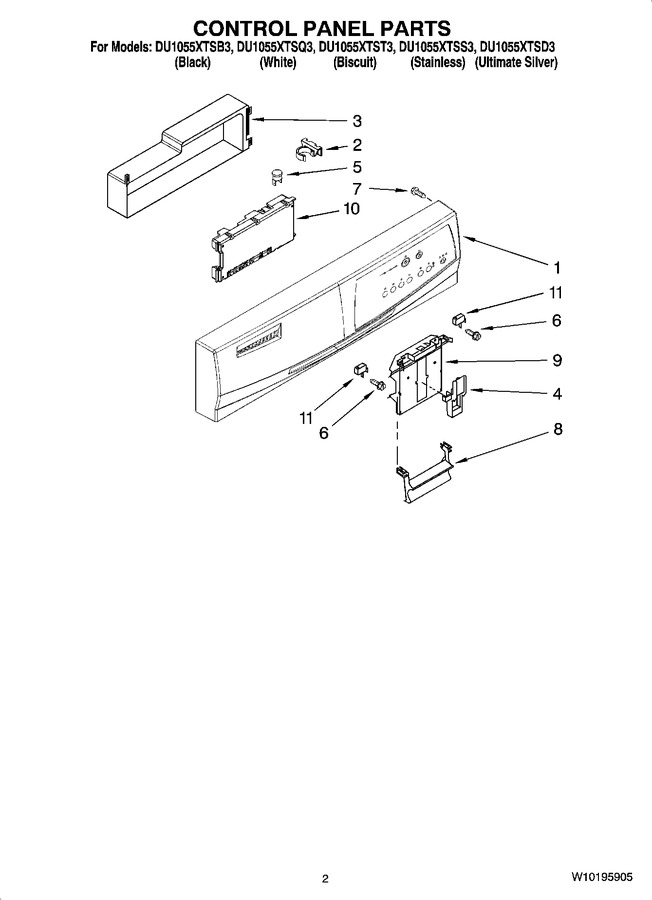

02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10102848		Console Asm. (includes Active Overlay & Insert) (white)		Appelez-nous	-
1	W10102849		Console Asm. (includes Active Overlay & Insert) (biscuit)		Appelez-nous	-
1	WPW10021710		Console Asm. (includes Active Overlay & Insert) (black)   (Replaces: W10102847)				$ 396.81
2	8546546		Clip, Bi-metal				$ 7.82
3	W10158350		Cover Control Shield Assembly				$ 26.50
4	WP8524472		Actuator, Latch   (Replaces: 8524472)				$ 111.29
5	W10258275		Bi-metal   (Replaces: 661663)			Immediately	$ 41.71
6	WP3400412		Screw   (Replaces: 3400412)			Immediately	$ 7.94
7	WPW10348409		Screw (6)   (Replaces: 3369051)			Immediately	$ 8.20
8	8534986		Handle, Latch (biscuit)				$ 89.73
8	WP8534984		Handle, Latch (black)   (Replaces: 8534984)				$ 131.06
8	WP8534985		Handle, Latch (white)   (Replaces: 8534985)				$ 127.13
9	8193882		Bolt, Latch   (Replaces: 8524476)			Immediately	$ 114.47
10	WPW10084142		Control, Electronic   (Replaces: W10084142)			Immediately	$ 215.18
11	WP8269209		Switch, Door   (Replaces: 8269209)			Immediately	$ 43.30

    View Diagram in Separate Window       Print Part List
