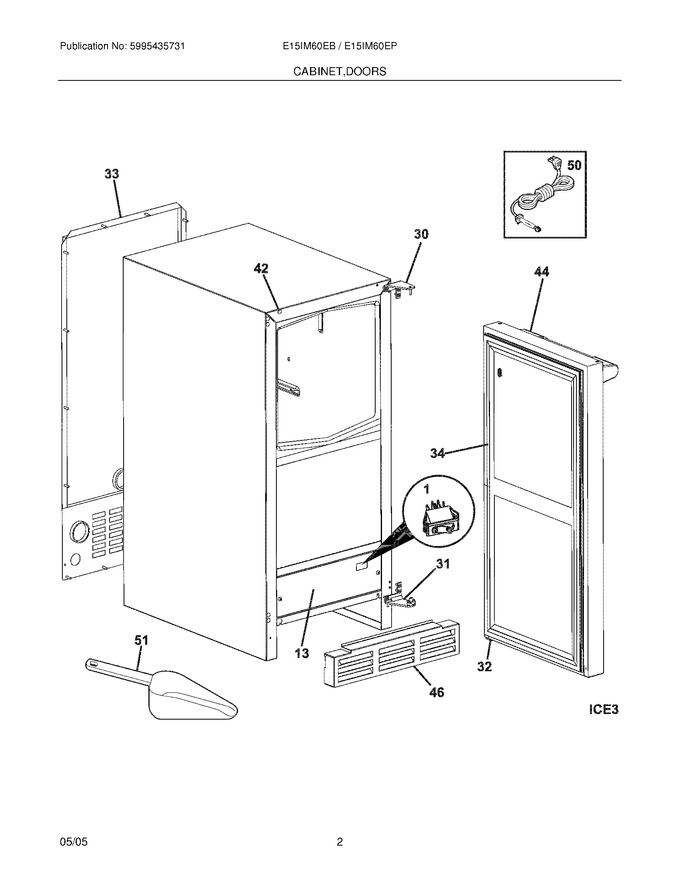

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
13	5304446649		Panel,front ,lower		Appelez-nous	-
30	5304446664		Hinge,top Rh				$ 317.41
31	5304446665		Hinge,bottom Rh				$ 315.02
32	5304446666		Plate,door Pivot		Appelez-nous	-
33	5304446667		Panel,back		Appelez-nous	-
42	5304446611		Plug,hinge Holes ,top/bottom		Appelez-nous	-
46	5304446674		Grille,kick Plate				$ 715.21
51	5304446677		Scoop,ice				$ 114.17
F1	5304446639		Switch,cycle Selector ,rocker				$ 170.88
F34	5304446668		Gasket,door				$ 229.33
F44	5304446638		Door Assembly,designer ,with Handle		Appelez-nous	-
F50	5304446676		Power Cord,electric Svce		Appelez-nous	-
NI	5304446590		Door Closer				$ 125.69
NI	5304446640		Wire,rocker Switch		Appelez-nous	-
