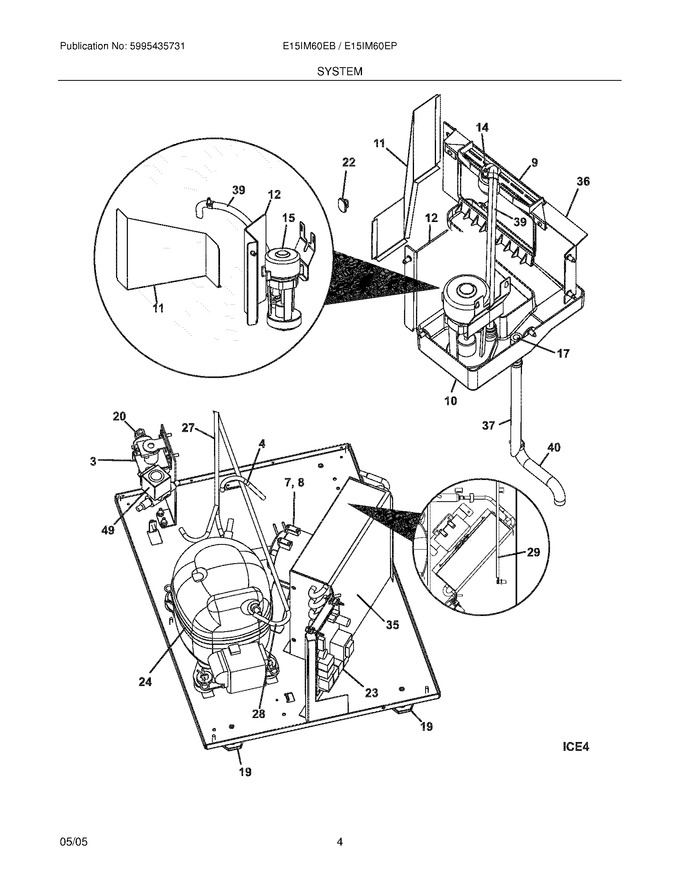

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	5304446645		Receptacle,water Dispersal		Appelez-nous	-
10	5304446646		Trough,water		Appelez-nous	-
11	5304446647		Cover,evaporator		Appelez-nous	-
12	5304446648		Cover,pump		Appelez-nous	-
14	5304446650		Clamp,dispenser Tube		Appelez-nous	-
15	5304446651		Pump,water ,circulation				$ 490.22
17	5304446653		Standpipe				$ 268.24
19	5304446606		Leveling Leg,screw		Appelez-nous	-
20	5304446654		Elbow,90 Degree ,brass		Appelez-nous	-
22	5304446655		Hook,ice Scoop		Appelez-nous	-
29	5304446663		Tube,therm Sensor				$ 265.96
F23	5304446656		Control Board,printed Circuit ,w/thermistor				$ 878.85
F24	5304446657		Compressor Assembly,w/electricals ,includes Dryer		Appelez-nous	-
F27	5304446661		Tube,discharge		Appelez-nous	-
F28	5304446662		Tube,suction		Appelez-nous	-
F3	5304446641		Valve,water ,solenoid				$ 395.12
F35	5304446669		Condenser		Appelez-nous	-
F36	5304446670		Evaporator				$ 826.35
F37	5304446671		Tube,drain		Appelez-nous	-
F39	5304446672		Tube,preformed		Appelez-nous	-
F4	5304446642		Tube,process		Appelez-nous	-
F40	5304446673		Tubing,drain		Appelez-nous	-
F49	5304446675		Valve,hot Gas By-pass ,with Coil				$ 447.24
F7	5304446643		Motor,condenser Fan				$ 704.34
F8	5304446644		Fan Blade,condenser Fan		Appelez-nous	-
NI	5304446680		Water Line Assy		Appelez-nous	-
NI	5304446658		· Drier-filter		Appelez-nous	-
NI	5304446659		· Overload Protector,compressor		Appelez-nous	-
NI	5304446660		· Relay,compressor		Appelez-nous	-
NI	5304446678		Nut,compression ,with Sleeve		Appelez-nous	-
NI	5304446652		Wiring Harness,water Pump		Appelez-nous	-
NI	5304446679		Clamp,tube		Appelez-nous	-
