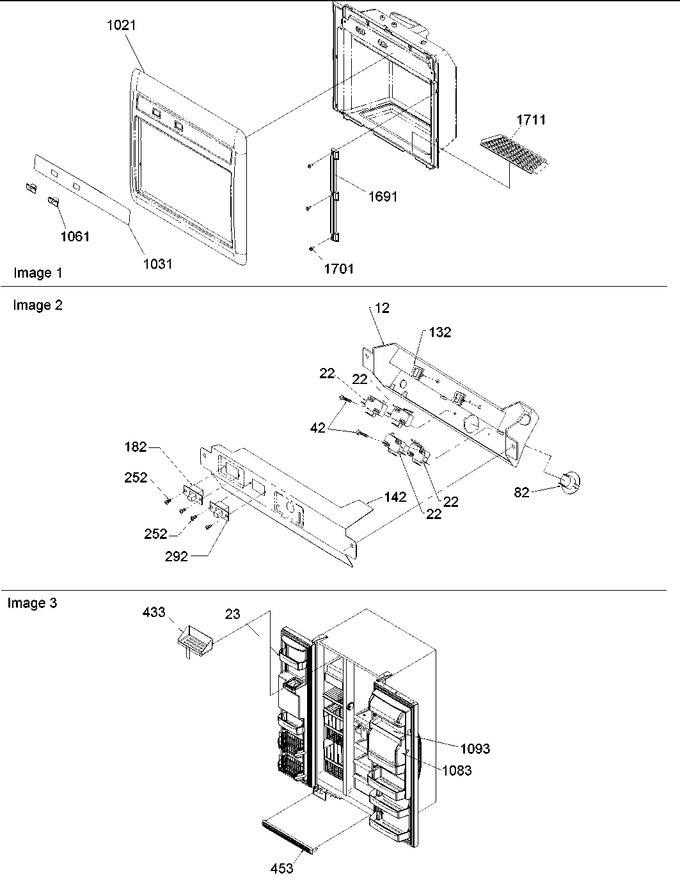

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 10323308 | Bracket,elec Mntg |
|
- | |||||
| 22 | 12419601 | Switch, Limit |
|
- | |||||
| 23 | 12311804 | Shelf, Frz Door |
|
- | |||||
| 42 | M0237809 | Screw, T.f. |
|
- | |||||
| 82 | 10131702 | Socket, Light |
|
- | |||||
| 132 | B5667304 | Wire Clip |
|
- | |||||
| 142 | 10131806 | Cover, Elec Brkt |
|
- | |||||
| 182 | 10166002 | Switch-crushed/cube |
|
- | |||||
| 252 | W11084238 | Screw (Replaces: M0234001) |
|
- | |||||
| 292 | 10166004 | Switch, Light |
|
- | |||||
| 433 | 10870802 | Shelf, Ice Cream |
|
- | |||||
| 453 | 12321807Q | Assy, Toe Grille (white) |
|
$ 136.91 | |||||
| 1021 | 12501902W | Facade,dispenser(white) |
|
- | |||||
| 1031 | 12508206W | Insert,facade(white) |
|
- | |||||
| 1061 | 12502102W | Cap, Switch(white) |
|
- | |||||
| 1083 | 12424302 | Assy, Chiller |
|
- | |||||
| 1093 | 12309403 | Shelf, Snack |
|
- | |||||
| 1691 | 12335602 | Extension, Cavity |
|
- | |||||
| 1701 | M0216517 | Screw |
|
- | |||||
| 1711 | 12502001W | Grille,sump(white) |
|
- | |||||
| NI | A3189379 | Gasket, Foam |
|
- |
