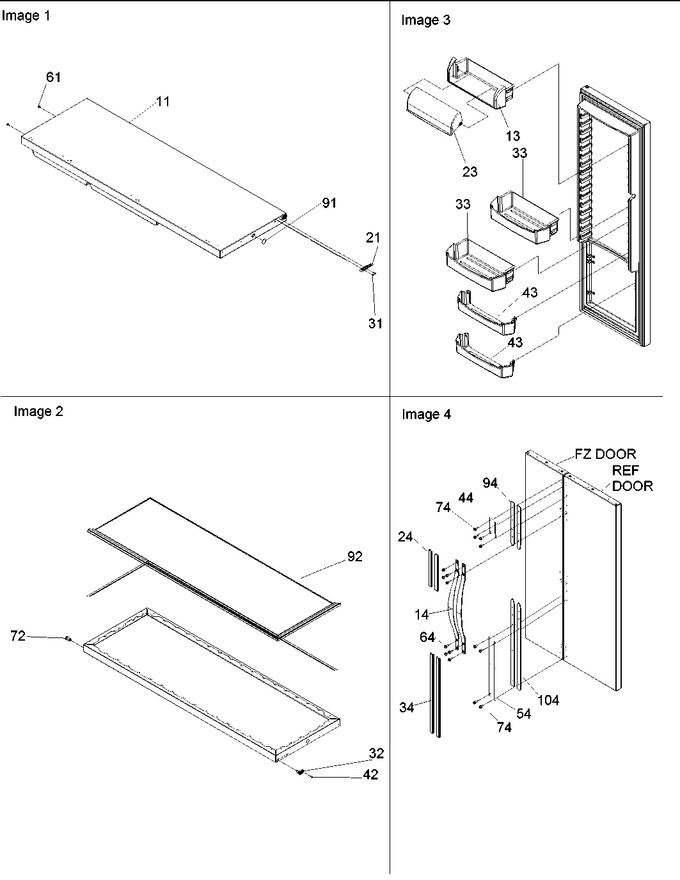

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12309705WQ		Assy,ref Dr Foam(white) Sxs		Appelez-nous	-
13	12308603		Frame, Dairy				$ 26.46
14	12495001W		Handle,ref/fz Dr(white)		Appelez-nous	-
21	C8972409		Stop, Door (wht)		Appelez-nous	-
23	12308701		Door, Dairy		Appelez-nous	-
24	12273501		Trim-w Sxs Top		Appelez-nous	-
31	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
32	R0181181		Closure, Door (wht)   (Replaces: 12113202)			Immediately	$ 7.55
33	12309511		Bucket, Ref Door				$ 39.49
34	12273504		Trim-w Sxs Bot		Appelez-nous	-
42	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.96
43	12311206		Shelf, Ref Door				$ 30.51
44	12273806		Retainer,top Trim		Appelez-nous	-
54	12273807		Retainer,btm Trim		Appelez-nous	-
61	M0311605		Plug, Button (wht)		Appelez-nous	-
64	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 10.58
72	10961001		Bushing, Door (wht)		Appelez-nous	-
74	M0216517		Screw		Appelez-nous	-
91	A3080001		Plug, Button (blk)		Appelez-nous	-
92	R9800046		Assy,ref Dr Gasket(white)		Appelez-nous	-
94	12495103W		Trim,top Handle(white)		Appelez-nous	-
104	12495104W		Trim,btm Handle(white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
