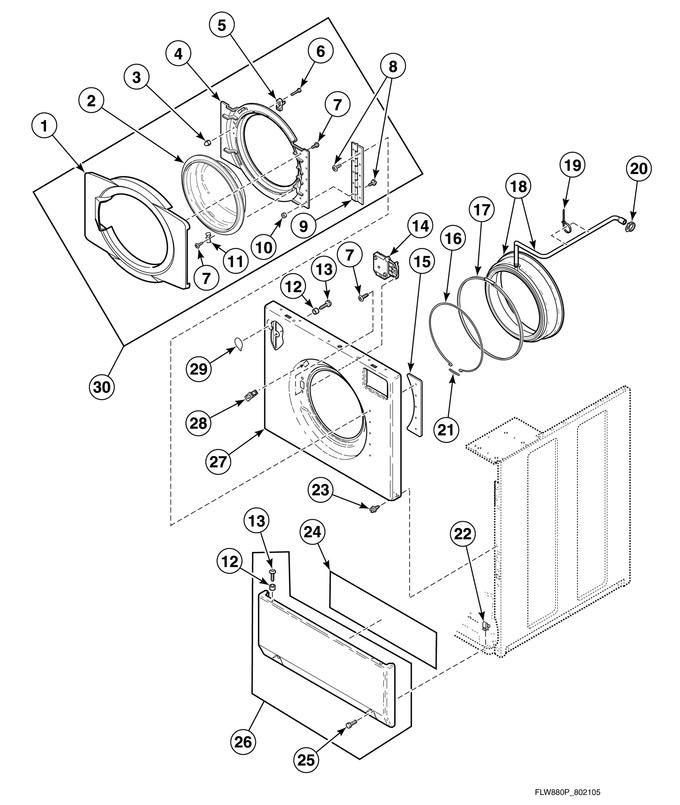

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	801904W		Outer Door Bezel				$ 74.50
2	800343P		Door Glass				$ 85.78
3	801994		Nut		Appelez-nous	-
4	801903		Inner Door Bezel				$ 87.15
5	685430		Locking Catch				$ 22.48
6	801993		Screw			Immediately	$ 7.72
7	800548		Screw			Immediately	$ 4.31
8	801019		Screw			Immediately	$ 7.31
9	802934		Door Hinge				$ 84.55
10	M0282009		Nut   (Replaces: 23951)				$ 14.07
11	800906		Hold-down Clip				$ 10.86
12	56079		Panel Locator			Immediately	$ 7.72
13	39733		Screw				$ 7.72
14	685429		Door Latch/switch Assembly				$ 152.89
15	802412		Hinge Plate				$ 99.19
16	800438		Wire Clamp Ring				$ 6.25
17	685743P		Door Seal Clamp (comment: Seal To Outer Tub Front)				$ 44.64
18	801784P		Door Seal And Hose Assembly Kit (comment: Gray)				$ 162.14
18	800232P		Door Seal And Hose Assembly Kit (comment: Black)				$ 273.84
19	COMM PART		Harness Strap   (Replaces: 55881)		Appelez-nous	-
20	800803		Hose Clamp				$ 7.31
21	800346		Extension Spring				$ 7.72
22	36020		Nut			Immediately	$ 7.72
23	D503661		Screw		Appelez-nous	-
24	685368		Access Panel Damper				$ 9.73
25	801045		Screw				$ 4.70
26	D514250WP		Access Panel Assembly			Immediately	$ 98.34
27	800336WP		Front Panel				$ 264.30
28	800211		Door Switch				$ 12.14
29	201495		Sticker		Appelez-nous	-
30	801928WP		Door Assembly (comment: Includes Items 1-11)				$ 321.95
