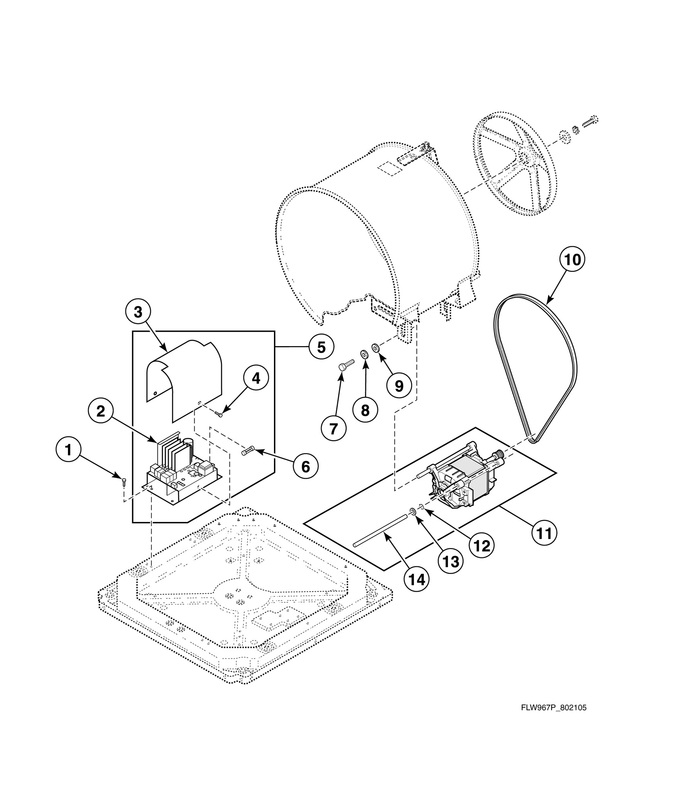

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D503661		Screw		Appelez-nous	-
2	803254P		Inverter Control Assembly				$ 1,758.42
3	801061		Control Shield		Appelez-nous	-
4	D501524		Screw		Appelez-nous	-
5	801526P		Inverter Assembly Kit (comment: Includes Items 2-4, 6, 801063 Motor Harness Assembly And Wire Ties)				$ 618.70
6	801755		Fuse (comment: Use For Inverter Control)				$ 37.02
7	M400057		Screw		Appelez-nous	-
8	02834		Washer		Appelez-nous	-
9	M400080		Washer				$ 7.72
10	800319P		Drive Belt			Immediately	$ 72.07
11	801684P		Motor And Rod Assembly Kit (comment: Includes 2 Each Of Items 12-14 And Wire Ties)			Immediately	$ 627.25
12	WP23748		Retaining Ring   (Replaces: 23748)			Immediately	$ 12.54
13	WP233520		Washer   (Replaces: 52549)			Immediately	$ 8.36
14	801062		Motor Mount Rod				$ 51.00
