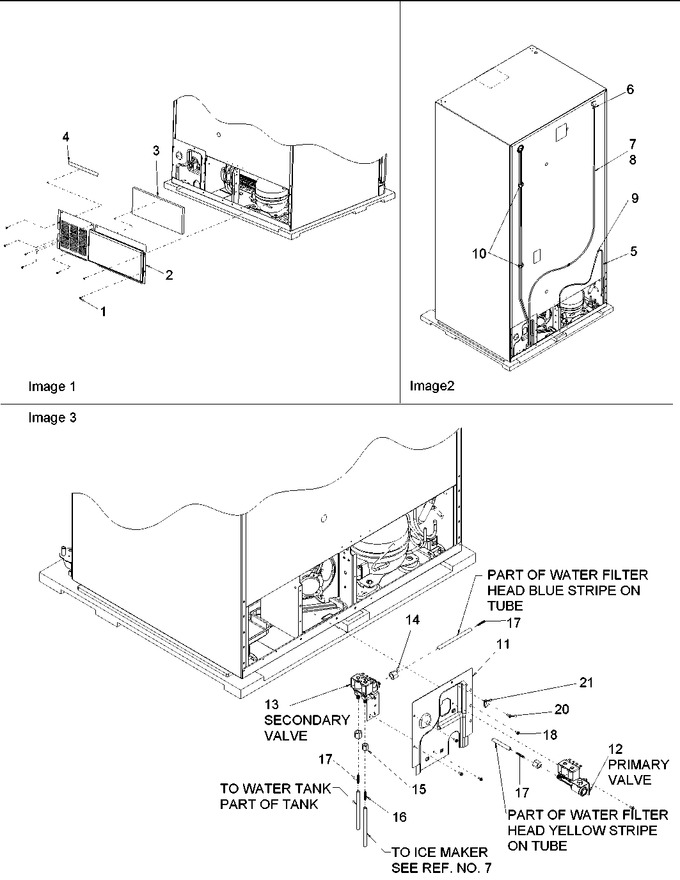

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 7.86
2	12575101ED		Back, Mach Comp		Appelez-nous	-
3	B0523599		Insulation, Mc Back		Appelez-nous	-
4	B5759649		Gasket, Mc Back		Appelez-nous	-
5	WP67006506		Cord, Power   (Replaces: 12583301)				$ 26.42
6	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.05
7	WPB5705307		Tube, Plastic 74.5`` X   (Replaces: B5705328)				$ 12.43
8	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 7.82
9	WPM0104106		Clip   (Replaces: M0104106)				$ 7.78
10	M0104102		Clip, Cord				$ 8.10
11	12575201ED		Cover, Water Valve		Appelez-nous	-
12	WP12544002		Valve, Primary Water   (Replaces: 12544002)			Immediately	$ 244.10
13	12002193		Valve, Secondary Water   (Replaces: 12544102)				$ 206.00
14	M0753002		Nut, Sleeve		Appelez-nous	-
15	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 10.97
16	A1055105		Spring, Anti Kink		Appelez-nous	-
17	A1055104		Spring, Anti-kink		Appelez-nous	-
18	681390		Screw   (Replaces: M0251015)				$ 13.06
20	M0227217		Screw, Sm		Appelez-nous	-
21	M0108001		Clamp, Tube		Appelez-nous	-
NI	M0322201		Wire Tie K		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
