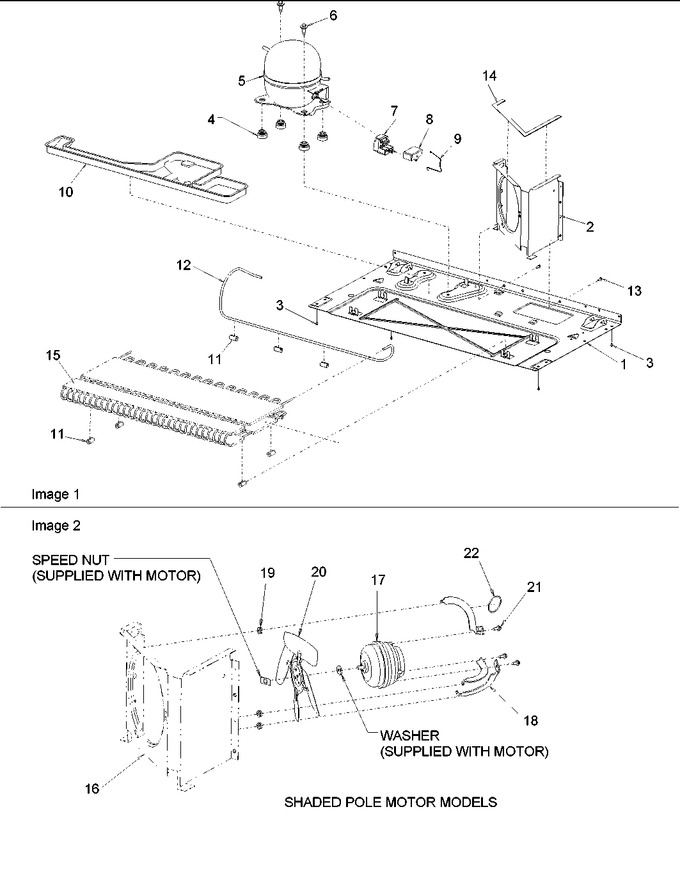

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12457103		Basepan, Mc		Appelez-nous	-
2	12575302		Shroud,cond Fan		Appelez-nous	-
3	M0260242		Screw, Tf		Appelez-nous	-
4	WPW10169124		Grommet, Compressor   (Replaces: 10835901)			Immediately	$ 7.55
5	W10309994		Compressor, Tc Tpe1390y   (Replaces: 12049718)			Immediately	$ 643.55
6	M0221523		Screw, Shldr		Appelez-nous	-
7	WP12555902		Overload, Relay   (Replaces: 12555902)			Immediately	$ 138.37
8	WP65889-4		Capacitor   (Replaces: C8931612)			Immediately	$ 61.14
9	12576801		Strap, Bale		Appelez-nous	-
10	WP12579803		Pan, Drain   (Replaces: 12579801)				$ 257.73
11	67005680		Grommet, Condenser   (Replaces: 12578601)				$ 22.10
12	12588701Q		Tube, Discharge				$ 63.45
13	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
14	WP854334		Gasket, Cond Shroud   (Replaces: A3189387)				$ 13.94
15	WP67006131		Condenser   (Replaces: 12560503ED)				$ 385.08
16	12575302		Shroud,cond Fan		Appelez-nous	-
17	833697		Motor, Condenser Fan   (Replaces: 10884507)			Immediately	$ 88.15
18	12578801		Bracket, Cond Mtr		Appelez-nous	-
19	12578701		Grommet, Fan Brkt		Appelez-nous	-
20	WP12587601		Blade, Cond Fan   (Replaces: 12587601)				$ 133.00
21	M0223816		Screw, Tr				$ 5.27
22	M0321210		Tie, Elec		Appelez-nous	-
NI	12669001		Harness,mc		Appelez-nous	-
