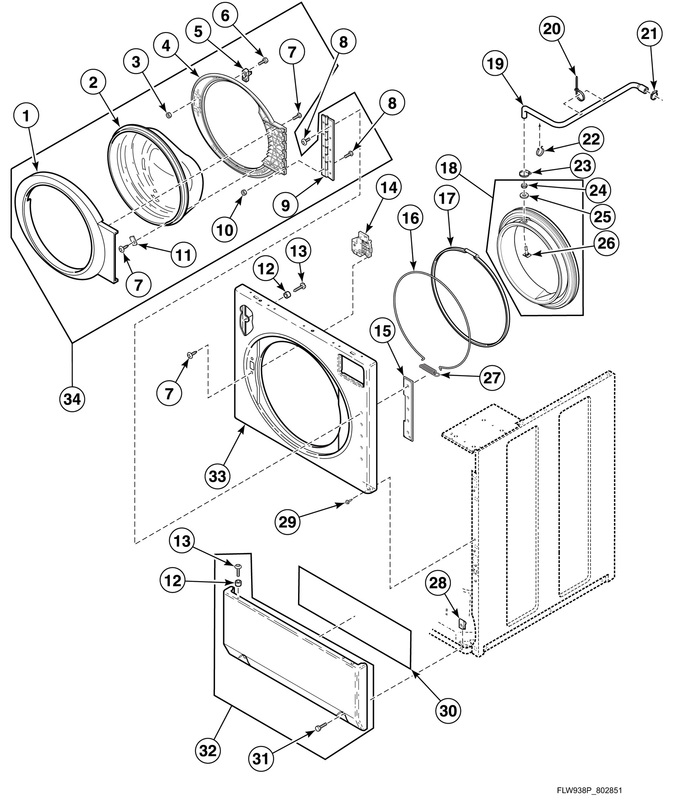

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	802616WP		Outer Bezel Assembly		Appelez-nous	-
2	802695P		Door Glass				$ 197.07
3	685846		Nut				$ 7.72
4	808095		Inner Door Bezel Kit   (Replaces: 802307P)			Immediately	$ 89.30
5	802803		Door Catch Assembly			Immediately	$ 9.37
6	801993		Screw			Immediately	$ 7.72
7	800548		Screw			Immediately	$ 4.31
8	801019		Screw			Immediately	$ 7.31
9	802934		Door Hinge				$ 84.55
10	M0282009		Nut   (Replaces: 23951)				$ 13.40
11	802700		Glass Mounting Clip			Immediately	$ 7.72
12	56079		Panel Locator			Immediately	$ 7.72
13	39733		Screw				$ 7.72
14	802317P		Door Latch/switch Assembly			Immediately	$ 87.02
15	802206		Hinge Plate				$ 29.34
16	806466		Wire Clamp Ring   (Replaces: 802283)			Immediately	$ 4.70
17	802281		Hose Clamp (comment: Seal To Outer Tub Front)				$ 34.17
18	802866P		Door Seal Assembly (comment: Black; Includes Items 24-26)			Immediately	$ 437.40
18	802830P		Door Seal Kit (comment: Gray; Includes Items 24-26)			Immediately	$ 318.52
19	802256		Dispenser-to-door Seal Hose				$ 35.94
20	COMM PART		Harness Strap   (Replaces: 55881)		Appelez-nous	-
21	802164		Hose Clamp				$ 5.94
22	687500		Wire Clip		Appelez-nous	-
23	802698		Hose Clamp				$ 13.16
24	802292		Nut		Appelez-nous	-
25	802293		Washer		Appelez-nous	-
26	802291		Boot Nozzle				$ 9.67
27	806466		Extension Spring   (Replaces: 802285)			Immediately	$ 4.70
28	36020		Nut			Immediately	$ 7.72
29	D503661		Screw		Appelez-nous	-
30	204552		Front Panel Pad   (Replaces: 36204)				$ 1.98
31	801045		Screw				$ 4.70
32	D514250WP		Access Panel Assembly			Immediately	$ 98.34
33	802277WP		Front Panel				$ 231.99
34	802617WP		Door Assembly (comment: Includes Items 1-11; Item 8 To Mount Door To Panel Must Be Ordered Separately)				$ 717.70
