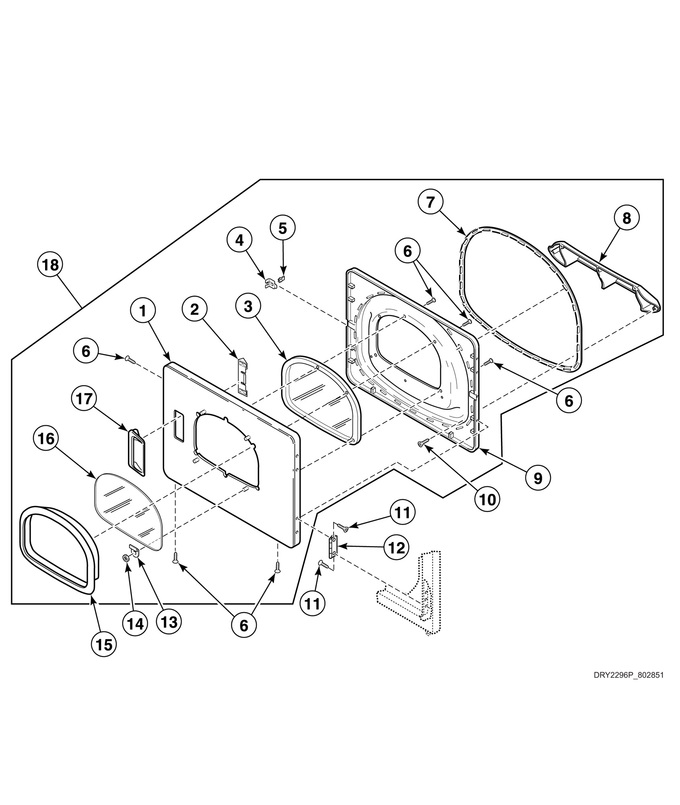

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D510082WP		Dryer Door				$ 124.04
2	D510129		Door Handle Wedge		Appelez-nous	-
3	D503982P		Dryer Door Window				$ 136.42
4	D510127		Door Strike Mount				$ 3.58
5	D510181		Door Strike			Immediately	$ 3.89
6	D500226		Screw				$ 4.31
7	D510147P		Liner Door Seal				$ 27.88
8	D503870W		Door Liner Grill			Immediately	$ 37.69
9	D510098W		Liner And Seal Assembly (comment: Includes Item 7)				$ 116.10
10	D505870		Screw				$ 7.72
11	D505295		Screw				$ 1.63
12	D511036		Hinge			Immediately	$ 4.70
13	-		Not On Your Model		Appelez-nous	-
14	-		Not On Your Model		Appelez-nous	-
15	D512633		Window Trim		Appelez-nous	-
16	-		Not On Your Model		Appelez-nous	-
17	D510103WP		Door Pull And Wedge Kit (comment: Includes Item 2)			Immediately	$ 9.37
18	D511636WP		Door And Liner Assembly (comment: Includes Items 1-10, 15 And 17)		Appelez-nous	-
