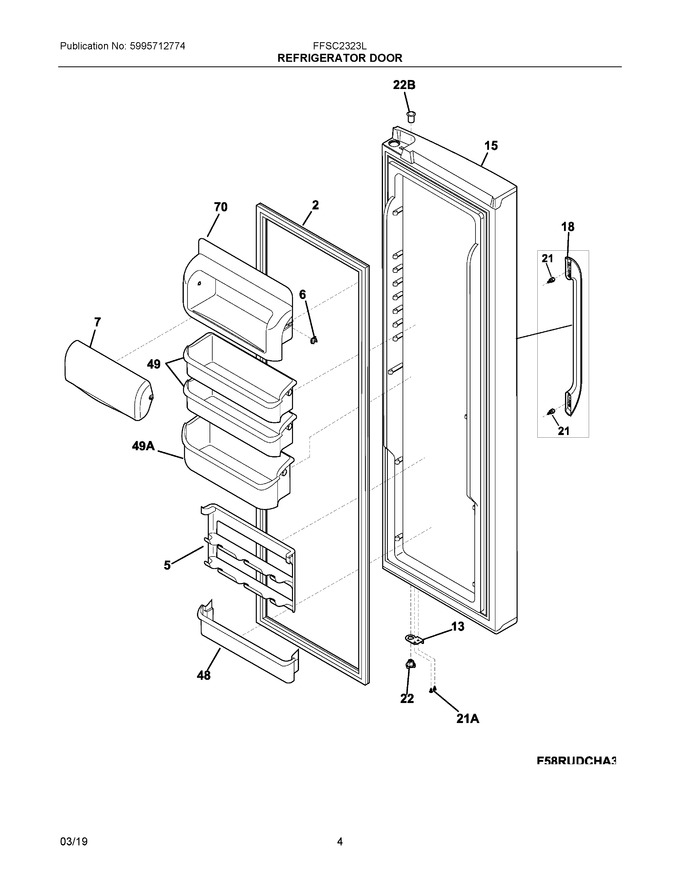

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241510201 | Gasket-refr Door, White, Magnetic |
|
Immediately | $ 246.82 | ||||
| 5 | 241516101 | Rack-can |
|
$ 73.40 | |||||
| 6 | 241515901 | Lug-dairy Compartment |
|
$ 47.19 | |||||
| 7 | 241515606 | Door-dairy (Replaces: 241515601) |
|
$ 45.51 | |||||
| 13 | 241942603 | Door Stop, Black, Ref |
|
$ 22.84 | |||||
| 15 | 241837279 | Door-refr, White, Complete Assy |
|
- | |||||
| 18 | 242059101 | Handle-door, White |
|
$ 139.88 | |||||
| 21 | 241695904 | Screw, Type Ab, #10-16 X .5 |
|
$ 16.01 | |||||
| 22 | 241990301 | Bearing-hinge, Gray |
|
$ 7.88 | |||||
| 48 | 241511706 | Bin-door, Ref |
|
$ 80.20 | |||||
| 49 | 241505306 | Bin-door, 2-liter |
|
$ 80.20 | |||||
| 70 | 241515801 | Compartment-dairy, Removable |
|
$ 197.66 | |||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22B | 241760403 | Bearing, Hinge, Top |
|
Immediately | $ 21.26 | ||||
| 49A | 241505506 | Bin-door, Gallon |
|
$ 99.83 |
