SELECT A DIAGRAM
New Model Search:

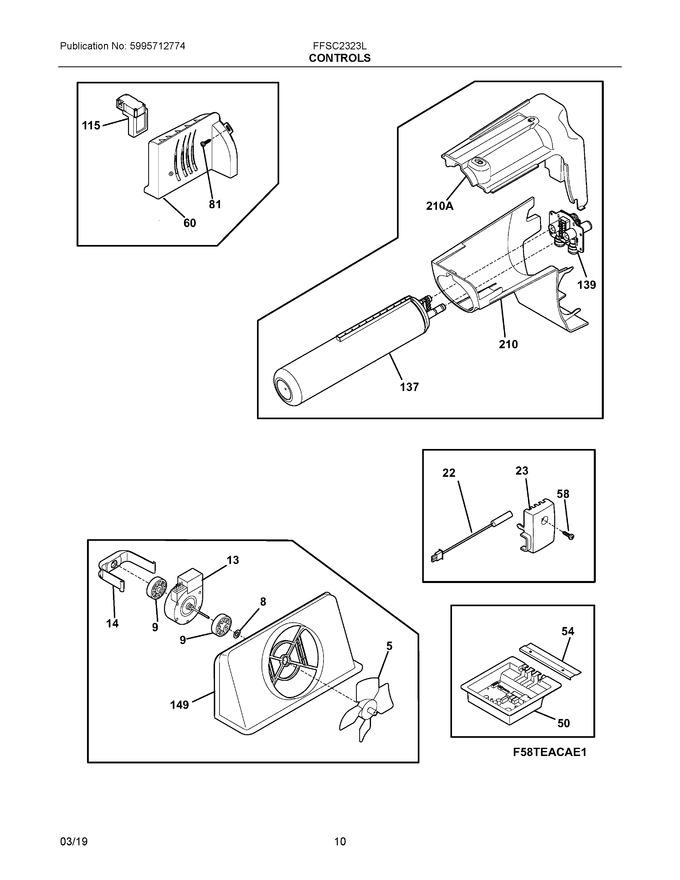

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 5308000010 | Fan Blade, Red, Evaporator Fan |
|
Immediately | $ 54.48 | ||||
| 8 | 215474201 | Washer, "slinger", Nylon, Evap Fan Shaft |
|
Immediately | $ 20.48 | ||||
| 9 | 241518301 | Bushing, Motor Mounting |
|
$ 74.03 | |||||
| 13 | 242290001 | Motor-blower |
|
$ 173.86 | |||||
| 14 | 242135301 | Clip, Evap Fan Motor, Evap Fan Motor |
|
$ 8.66 | |||||
| 22 | 240597220 | Sensor, Temperature, 10k, Ntc (Replaces: 240597203) |
|
Immediately | $ 5.73 | ||||
| 23 | 241845401 | Housing-sensor |
|
- | |||||
| 50 | 5304499075 | Board-main Power |
|
Immediately | $ 318.52 | ||||
| 54 | 241532401 | Channel |
|
$ 33.86 | |||||
| 58 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| 60 | 241755401 | Diffuser-air |
|
$ 37.57 | |||||
| 81 | 218843801 | Screw, Hx Wshr Hd Sems, 8-15a X 0.625 (Replaces: 5304455658) |
|
$ 16.01 | |||||
| 115 | 241853801 | Damper Assy, W/seal |
|
$ 174.83 | |||||
| 137 | WF3CB | Filter-water, Carbon (Replaces: 242294501) |
|
Immediately | $ 88.23 | ||||
| 139 | 242009604 | Base-water Filter (Replaces: 242009601) |
|
Immediately | $ 36.82 | ||||
| 149 | 242204504 | Shroud-evap Fan Mtg (Replaces: 241517601) |
|
$ 42.98 | |||||
| 210 | 241983815 | Housing-water Filtr |
|
$ 17.01 | |||||
| 210A | 241998303 | Mount-water Filter (Replaces: 241998302) |
|
$ 16.01 | |||||
| NIA | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| NIA | 241852501 | Clip, Wiring Harness |
|
$ 17.33 | |||||
| NIA | 241755501 | Insulation-air Duct |
|
$ 39.38 | |||||
| NIA | 241528304 | Seal, Foam, Evap Fan Assy |
|
- |
