01 - Cover Sheet

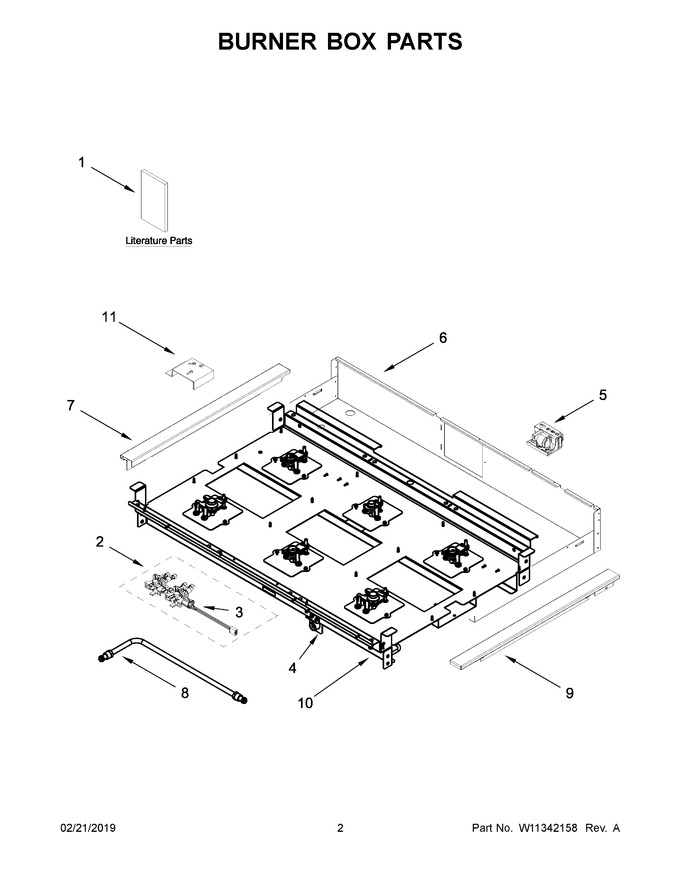

02 - Burner Box Parts


03 - Cooktop And Burner Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11254966		Guide, Use And Care		Appelez-nous	-
2	W11344092		Assembly, Valve Manifold (left Front And Left Rear)   (Replaces: W11315701)		Appelez-nous	-
3	W11344433		Switch, Harness   (Replaces: W10903728)				$ 191.56
4	W11121199		Bracket, Manifold		Appelez-nous	-
5	W11818690		Module, Spark   (Replaces: W11121317)			Immediately	$ 81.60
6	N/P		Box, Burner (not Serviced)		Appelez-nous	-
7	W11339740		Main Trim, Left   (Replaces: W11047750)			Immediately	$ 177.07
8	W11339379		Tube, Manifold Supply (left)   (Replaces: W10892347)				$ 179.47
9	W11339741		Main Trim, Right   (Replaces: W11047752)			Immediately	$ 177.07
10	N/P		Assembly, Burner Box (not Serviced)		Appelez-nous	-
11	8285790		Bracket, Mounting Orifice				$ 85.85
1A	W11241308		Diagram, Wiring (cooktop)		Appelez-nous	-
2A	W11344314		Assembly, Valve Manifold (center Front And Center Rear)   (Replaces: W11315704)		Appelez-nous	-
2B	W11344430		Assembly, Valve Manifold (right Front And Right Rear)   (Replaces: W11315700)		Appelez-nous	-
8A	W11339377		Tube, Manifold Supply (center)   (Replaces: W10892445)		Appelez-nous	-
8B	W11337056		Tube, Manifold Supply (right)   (Replaces: W10892450)				$ 177.42
NI	W11038934		Harness, Jumper				$ 186.90
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11213527		Harness, Cooktop				$ 195.94
NI	W11303495		Cord, Power		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
