SELECT A DIAGRAM

01 - Cover Sheet


02 - Burner Box Parts

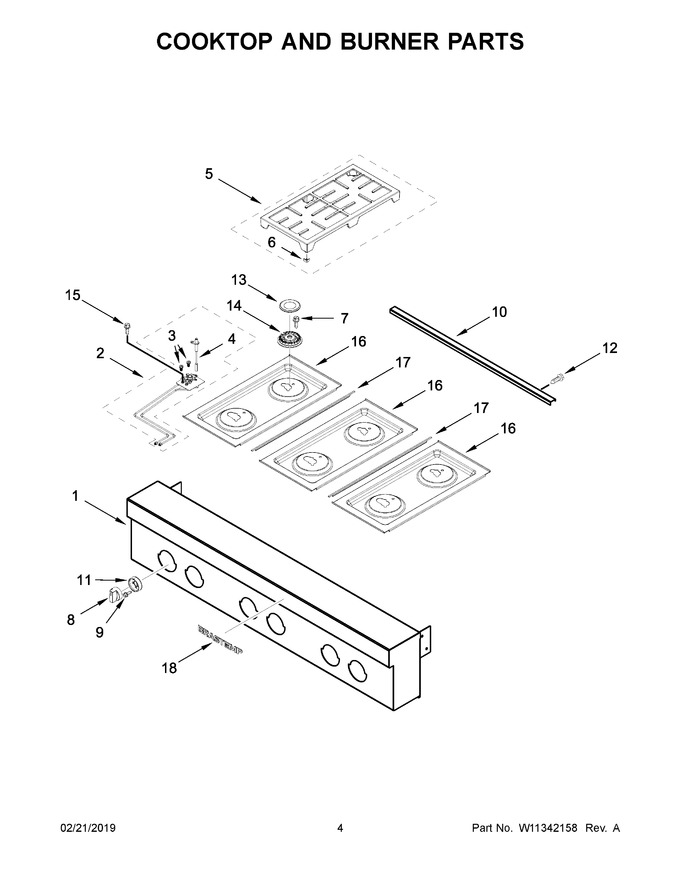

03 - Cooktop And Burner Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11785262		Panel, Console   (Replaces: W10878402)				$ 920.35
2	W11344449		Assembly, Orifice Holder (left Front And Right Front)   (Replaces: W11315822)		Appelez-nous	-
3	W11305341		Orifice, Main (12.0k Btu Lp) (all But Center Rear)		Appelez-nous	-
4	W11580024		Igniter (left Front And Right Front)   (Replaces: W11238758)			Immediately	$ 23.66
5	W11344501		Assembly, Grate (black)   (Replaces: W11241666)			Immediately	$ 218.28
6	W11314395		Bumper, Grate   (Replaces: W11306485)				$ 6.95
7	W11084504		Screw (left Front And Right Front)   (Replaces: W11196030)		Appelez-nous	-
8	W11344534		Knob, Dual (stainless (left Front And Right Front))   (Replaces: W11314310)				$ 78.53
9	W11404293		Screw   (Replaces: W11213732)			Immediately	$ 14.74
10	W10269217		Trim, Island				$ 308.49
11	W11344536		Bezel, Front (stainless)   (Replaces: W11314224)				$ 65.68
12	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
13	W11344538		Cap, Burner (black (includes 6))   (Replaces: W11121390)			Immediately	$ 141.29
14	W11344539		Spreader, Flame (high) (left Front And Right Front)   (Replaces: W10891746)			Immediately	$ 141.16
15	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
16	W11344755		Panel, Cooktop (black (left))   (Replaces: W11038235)				$ 199.76
17	W10271524		Trim, T-strip (black)				$ 212.34
18	W11292869		Nameplate		Appelez-nous	-
11A	W11344537		Bezel, Rear (stainless)   (Replaces: W11314227)		Appelez-nous	-
14A	W11344742		Spreader, Flame (low) (left Rear, Center Front, Right Rear)   (Replaces: W10891974)			Immediately	$ 134.12
14B	W11344746		Spreader, Flame (aux) (center Rear)   (Replaces: W10891978)			Immediately	$ 133.20
16A	W11344757		Panel, Cooktop (black (center))   (Replaces: W11038257)				$ 199.76
16B	W11344761		Panel, Cooktop (black (right))   (Replaces: W11038248)				$ 199.76
2A	W11344454		Assembly, Orifice Holder (left Rear And Right Rear)   (Replaces: W11315820)		Appelez-nous	-
2B	W11344456		Assembly, Orifice Holder (center Front)   (Replaces: W11315823)		Appelez-nous	-
2C	W11344461		Assembly, Orifice Holder (center Rear)   (Replaces: W11315821)		Appelez-nous	-
3A	W11305342		Orifice, Simmer (2.5k Btu Lp) (left Front, Center Rear, Right Front)		Appelez-nous	-
4A	W11628654		Igniter (left Rear, Center Front, Center Rear, Right Rear)   (Replaces: W10892340)			Immediately	$ 54.92
7A	W11227370		Screw (left Rear, Center Front, Center Rear, Right Rear)   (Replaces: W11196254)			Immediately	$ 14.91
8A	W11344535		Knob, Single (stainless (left Rear, Center Front, Center Rear, Right Rear))   (Replaces: W11314311)				$ 78.92

    View Diagram in Separate Window       Print Part List
