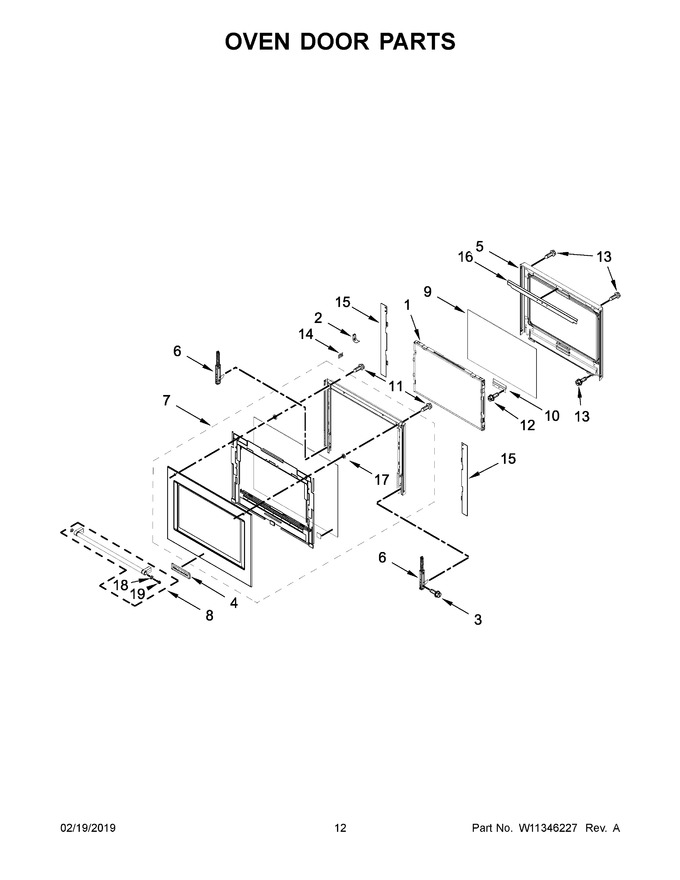

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10347596		Assembly, Window Pack   (Replaces: W10347596)			Immediately	$ 323.05
2	W10812024		Spring, Door Glass Fixation   (Replaces: W10284285)				$ 165.76
3	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 8.18
4	W10909682		Badge   (Replaces: W10518672)			Immediately	$ 76.20
5	WPW10709147		Assembly, Liner   (Replaces: W10709147)				$ 366.69
6	W10825778		Hinge, Door   (Replaces: W10639069)			Immediately	$ 112.85
7	W11354841		Assembly, Door (black)   (Replaces: W11318280)				$ 840.39
8	W11518518		Assembly, Handle (stainless)   (Replaces: W10541913)				$ 231.75
9	W10827059		Glass, Inner   (Replaces: W10678524)				$ 199.80
10	W10853628		Bracket, Glass   (Replaces: W10284297)				$ 163.86
11	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 8.27
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
13	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 18.60
14	W11025615		Clip, Spring Metal   (Replaces: W10653954)			Immediately	$ 176.14
15	W10687815		Extension, Side Rail (left)				$ 71.68
16	W10669415		Shield, Door Liner				$ 69.55
17	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.81
18	W10846207		Medallion, Handle   (Replaces: W10551026)			Immediately	$ 23.14
19	W10920281		Screw   (Replaces: W10656499)			Immediately	$ 8.95
15A	W10687814		Extension, Side Rail (right)				$ 71.68
7A	W11354849		Assembly, Door (white)   (Replaces: W11318281)				$ 955.11
7B	W11354870		Assembly, Door (stainless)   (Replaces: W11318279)			Immediately	$ 963.14
7C	W11354880		Assembly, Door (black Stainless)   (Replaces: W11318375)				$ 1,105.91
