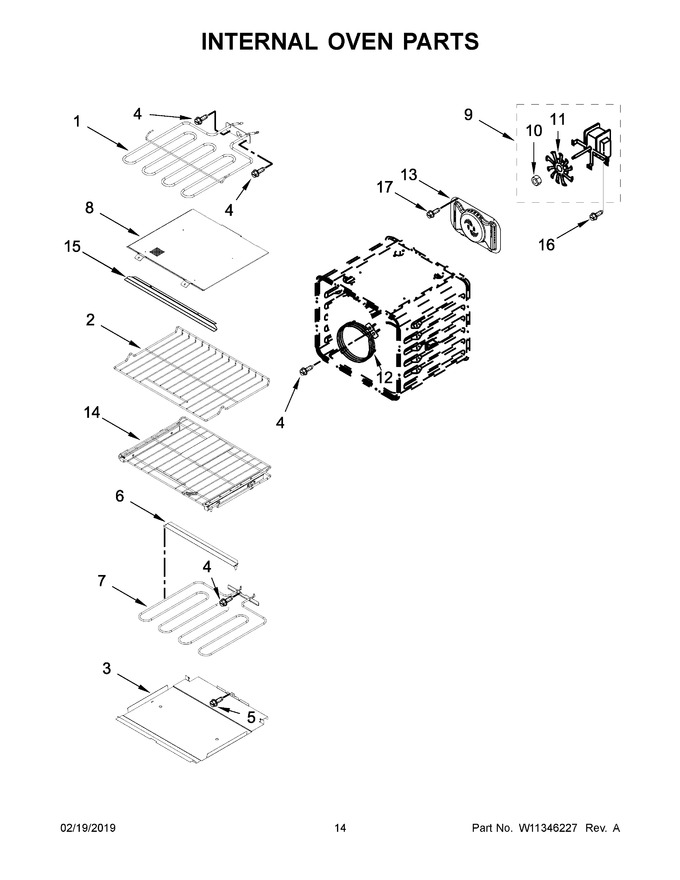

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10804429 | Element, Broil (Replaces: W10764078) |
|
Immediately | $ 152.91 | ||||
| 2 | WPW10554526 | Rack, Oven (Replaces: W10554526) |
|
Immediately | $ 174.25 | ||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 186.50 | |||||
| 4 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.95 | |||||
| 5 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 6 | W10282957 | Crossbar, Hidden Bake Tray |
|
$ 45.21 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W10546517) |
|
Immediately | $ 102.53 | ||||
| 8 | W11290999 | Shield, Broil Element (Replaces: W10911205) |
|
$ 200.90 | |||||
| 9 | W10860984 | Fan, Convection (Replaces: W10722667) |
|
Immediately | $ 176.41 | ||||
| 10 | W10794042 | Nut, Acorn (lh) (Replaces: W10631504) |
|
$ 12.51 | |||||
| 11 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 84.45 | ||||
| 12 | W11678579 | Element, Convection (Replaces: W10546519) |
|
Immediately | $ 115.24 | ||||
| 13 | W11234761 | Baffle, Bow Tie (Replaces: W10819989) |
|
$ 225.71 | |||||
| 14 | W11718046 | Rack, Sliding (Replaces: W10554531) |
|
Immediately | $ 173.45 | ||||
| 15 | W10588738 | Shield, Broil Front |
|
$ 95.76 | |||||
| 16 | W10850807 | Screw (Replaces: W10720084) |
|
$ 7.41 | |||||
| 17 | WP74003976 | Screw (Replaces: W10906658) |
|
$ 7.19 | |||||
| 13A | W11234763 | Baffle, Bow Tie (for Black Stainless Models) (Replaces: W10918895) |
|
$ 220.29 |
