SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet/drum

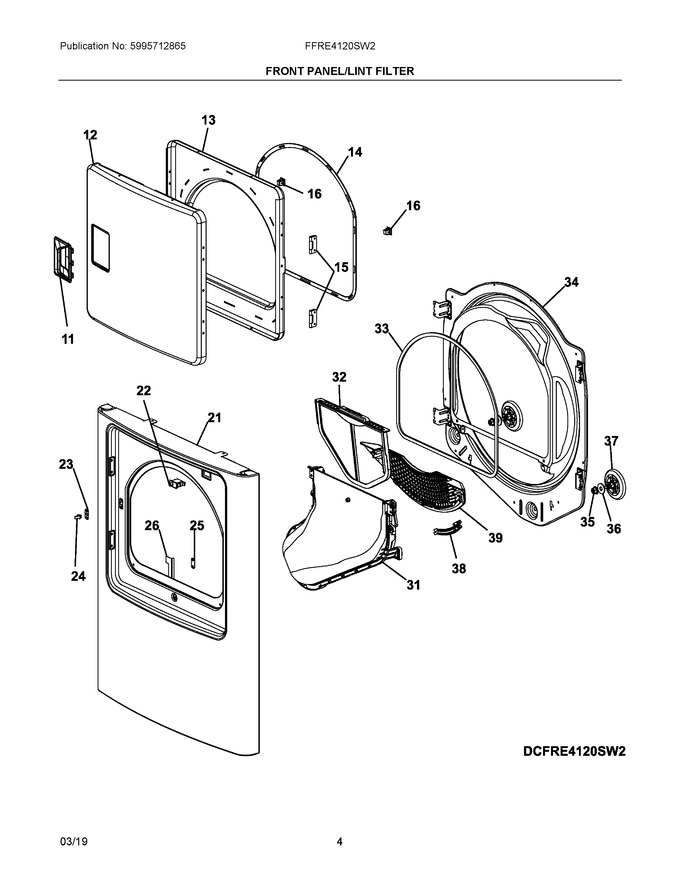

03 - Front Panel/lint Filter


04 - Controls


05 - Motor


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304536670		Handle, Door   (Replaces: 5304511397)				$ 10.96
12	5304511398		Door, Outer, White				$ 194.30
13	5304511399		Liner, Door, Inner		Appelez-nous	-
14	5304511400		Gasket, Door				$ 78.49
15	5304511401		Hinge, Assembly, Door		Appelez-nous	-
16	5304511402		Catch, Door Latch				$ 31.37
21	5304511403		Panel, Front, White				$ 256.10
22	5304511404		Switch, Door				$ 43.38
23	5304511405		Cover, Front Panel				$ 10.85
24	5304511406		Pin, Door Catch				$ 21.69
25	5304511407		Cover, Front Panel		Appelez-nous	-
31	5304511409		Flue Assembly, Air, Front				$ 189.41
32	5304511410		Lint Filter, Assembly				$ 136.78
33	5304511411		Gasket, Front Panel			Immediately	$ 14.46
34	5304511412		Support, Assembly, Front Panel		Appelez-nous	-
35	5304511425		Nut, Wheel   (Replaces: 5304511413)				$ 12.44
36	5304511414		Washer, Flat Gasket, Wheel		Appelez-nous	-
37	4056012471		Wheel, Assembly   (Replaces: 5304511415)				$ 32.27
38	5304511416		Sensor, Humidity, W/cover				$ 21.37
39	5304511417		Cover, Lint Filter		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
