01 - Cover Sheet
02 - Cabinet/drum
03 - Front Panel/lint Filter
04 - Controls
05 - Motor
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

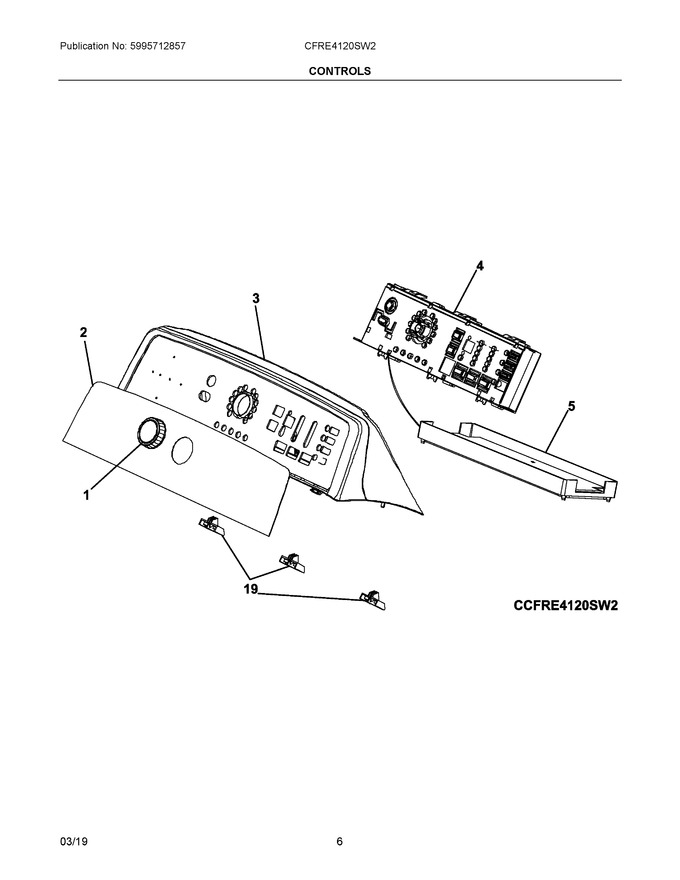

| 1 | 5304511364 | Knob, Assembly |
|
$ 43.67 | |||||
| 2 | 4056015409 | Overlay, Control Panel, White (Replaces: 5304511419) |
|
- | |||||
| 3 | 5304511420 | Control Panel, Assembly, White |
|
- | |||||
| 4 | 5304521162 | Pc Board, Assembly, Display |
|
$ 374.34 | |||||
| 5 | 5304521161 | Pc Board, Assembly, Main |
|
$ 335.53 | |||||
| 19 | 5304511422 | Bracket, Control Panel |
|
- |
