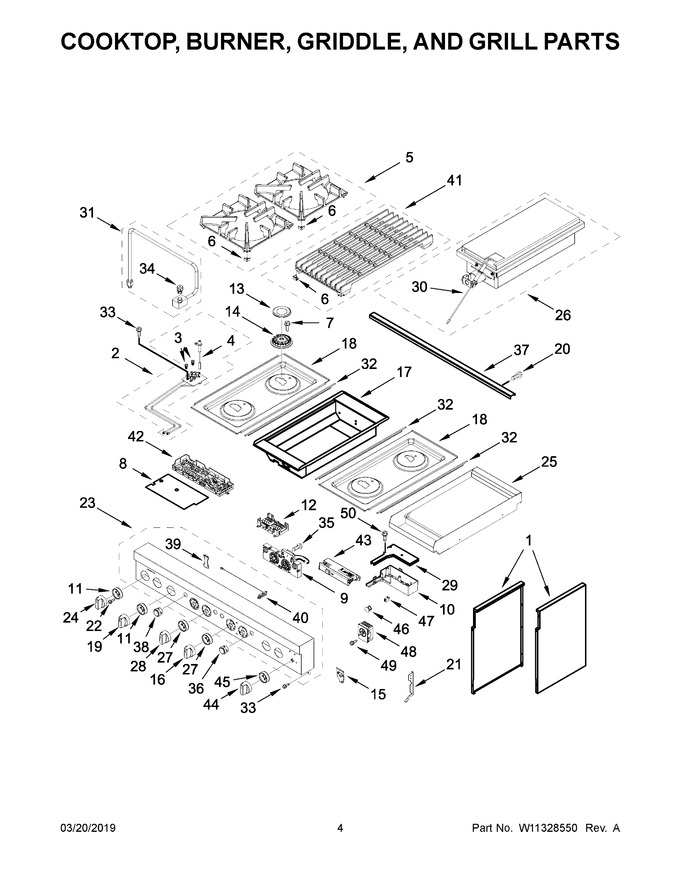

03 - Cooktop, Burner, Griddle, And Grill Parts


04 - 48" Chassis Parts


05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11321067		Panel, Cabinet Side (left)   (Replaces: W11111429)				$ 439.37
2	W11319741		Assembly, Orifice Holder (left Front)   (Replaces: W10892807)				$ 121.66
3	W11643164		Orifice, Main (17.4k) (left Front And Right Center Front)   (Replaces: W10892422)			Immediately	$ 60.97
4	W11573760		Igniter (all But Right Center Rear)   (Replaces: W11238757)			Immediately	$ 23.48
5	W11515370		Assembly, Grate (black (set Of 2))   (Replaces: W11179862)				$ 394.33
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
7	W11447718		Screw   (Replaces: W11196257)			Immediately	$ 14.74
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
9	W11319204		Interface, User   (Replaces: W11292568)			Immediately	$ 573.94
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11316873		Bezel, Cooktop (for 4 Cooktop Burners And Grill)   (Replaces: W11090283)			Immediately	$ 49.29
12	W11317945		Manager, Appliance (expansion)   (Replaces: W10890116)				$ 453.65
13	W11328971		Cap, Burner (black (includes 4))   (Replaces: W11121391)				$ 173.40
14	W11319683		Spreader, Flame (high) (all But Right Center Rear)   (Replaces: W10891987)			Immediately	$ 250.69
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
16	W11596839		Knob, Oven Mode (stainless)   (Replaces: W10891872)				$ 118.01
17	W11328566		Assembly, Grill Box   (Replaces: W11174429)		Appelez-nous	-
18	W11316696		Panel, Cooktop (black (left))   (Replaces: W10803515)				$ 513.23
19	W11620700		Knob, Grill (stainless)   (Replaces: W10894925)		Appelez-nous	-
20	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	W11674763		Screw   (Replaces: W10919387)				$ 14.76
23	W11444450		Panel, Console   (Replaces: W11253770)				$ 1,034.32
24	W11574368		Knob, Burner (for 4 Cooktop Burners) (stainless)   (Replaces: W10882958)			Immediately	$ 92.43
25	N/P		Assembly, Griddle Module (part Number Included On Burner Box Page)		Appelez-nous	-
26	W11328568		Assembly, Grill Burner   (Replaces: W11120976)				$ 848.94
27	W11317499		Bezel, Oven (for 4 Oven Knobs) (stainless)   (Replaces: W10914998)				$ 28.02
28	W11574369		Knob, Oven Temperature (stainless)   (Replaces: W10891871)				$ 118.01
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W11328571		Electrode, Grill   (Replaces: W11174598)		Appelez-nous	-
31	W11328376		Assembly, Grill Orifice Holder (left Center)   (Replaces: W11197929)		Appelez-nous	-
32	W10291193		Trim, L-strip		Appelez-nous	-
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
34	W10892423		Orifice, Grill (18k) (left Center)		Appelez-nous	-
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
36	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 23.67
37	W11320157		Trim, Island   (Replaces: W11156418)		Appelez-nous	-
38	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 23.81
39	W11318856		Assembly, Light Pipe   (Replaces: W10896369)				$ 109.35
40	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 228.92
41	W11515378		Assembly, Grill Grate   (Replaces: W11179894)		Appelez-nous	-
42	W11839801		Manager, Appliance (powermax)   (Replaces: W11100270)				$ 409.76
43	W11234290		Assembly, Wifi Module   (Replaces: W11110768)				$ 179.89
44	W11316866		Knob, Griddle (stainless)   (Replaces: W10884943)				$ 84.04
45	W11317495		Bezel, Griddle   (Replaces: W11104966)				$ 55.28
46	W10294500		Lens, Indicator Light				$ 7.69
47	W10116114		Light, Indicator Housing			Immediately	$ 93.57
48	W11318834		Control, Griddle   (Replaces: W11033497)				$ 356.52
49	WP7101P309-60		Screw   (Replaces: 7101P309-60)			Immediately	$ 7.30
50	W10709795		Screw   (Replaces: 7101P624-60)				$ 13.79
14A	W11319673		Spreader, Flame (low) (right Center Rear)   (Replaces: W10892022)			Immediately	$ 229.46
18A	W11316697		Panel, Cooktop (black (right Center))   (Replaces: W10803519)				$ 502.01
1A	W11320596		Panel, Cabinet Side (right)   (Replaces: W11111428)				$ 450.31
21A	W10130759		Bracket, Moving Console (right)				$ 75.94
2A	W11319746		Assembly, Orifice Holder (left Rear)   (Replaces: W10892495)				$ 123.91
2B	W11319743		Assembly, Orifice Holder (right Center Front)   (Replaces: W10892505)				$ 125.13
2C	W11328970		Assembly, Orifice Holder (right Center Rear)   (Replaces: W10892721)		Appelez-nous	-
3A	W10892418		Orifice, Main (15.4k) (left Rear)			Immediately	$ 103.03
3B	W10892440		Orifice, Main (7.2k) (right Center Rear)				$ 99.86
3C	W11661909		Orifice, Simmer (2.6k) (all But Right Center Rear)   (Replaces: W10892435)			Immediately	$ 74.14
3D	W10892429		Orifice, Simmer (2.0k) (right Center Rear)				$ 99.86
4A	W11238756		Igniter (right Center Rear)			Immediately	$ 67.96
