SELECT A DIAGRAM

01 - Cover Sheet


02 - Burner Box, Griddle, And Grill Parts


03 - Cooktop, Burner, Griddle, And Grill Parts


04 - 48" Chassis Parts


05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)

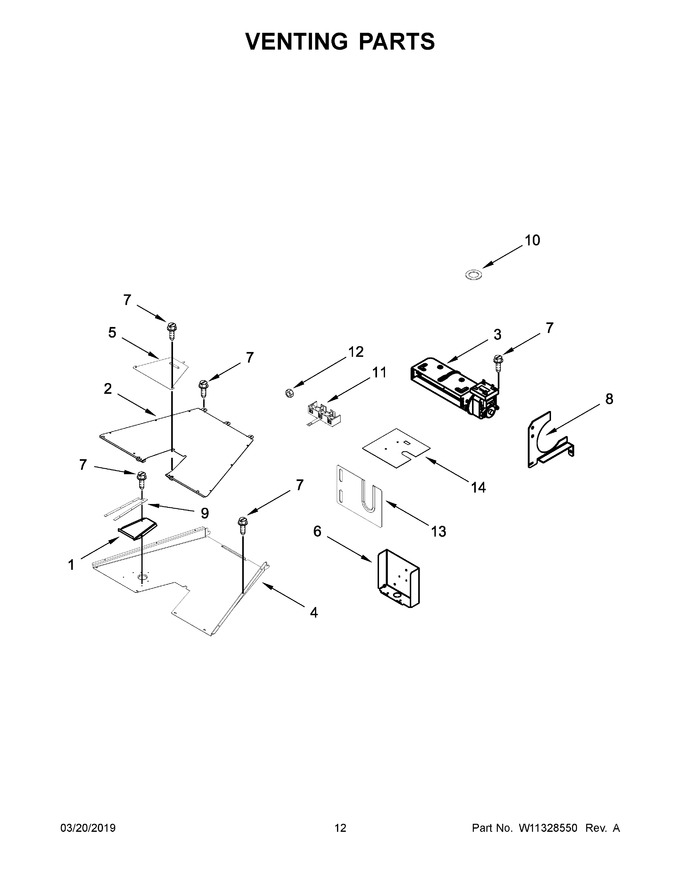

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10818234		Slope, Exhaust Vent (30")		Appelez-nous	-
2	W11320402		Vent, Cooling Top (30")   (Replaces: W11105223)				$ 139.98
3	W11248652		Blower   (Replaces: W11200129)			Immediately	$ 241.54
4	W11320403		Vent, Cooling Bottom (30")   (Replaces: W11105222)		Appelez-nous	-
5	W11320405		Plate, Cooling Latch   (Replaces: W11109518)		Appelez-nous	-
6	W11320158		Box, Terminal   (Replaces: W11284049)		Appelez-nous	-
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
8	W11047754		Bracket, Blower Mount		Appelez-nous	-
9	W10270397		Seal, Vent Slope (30")		Appelez-nous	-
10	W10270396		Seal, Chimney		Appelez-nous	-
11	WP9761958		Block, Terminal   (Replaces: 9761958)			Immediately	$ 47.96
12	WP112432		Nut, Hex   (Replaces: 112432)				$ 8.63
13	W11320407		Cover, Channel   (Replaces: W11106956)		Appelez-nous	-
14	9759721		Insulator, Terminal Box		Appelez-nous	-
1A	W10818235		Slope, Exhaust Vent (18")		Appelez-nous	-
2A	W11320597		Vent, Cooling Top (18")   (Replaces: W11113380)		Appelez-nous	-
4A	W11320598		Vent, Cooling Bottom (18")   (Replaces: W11113378)		Appelez-nous	-
9A	W10270402		Seal, Vent Slope (18")		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
