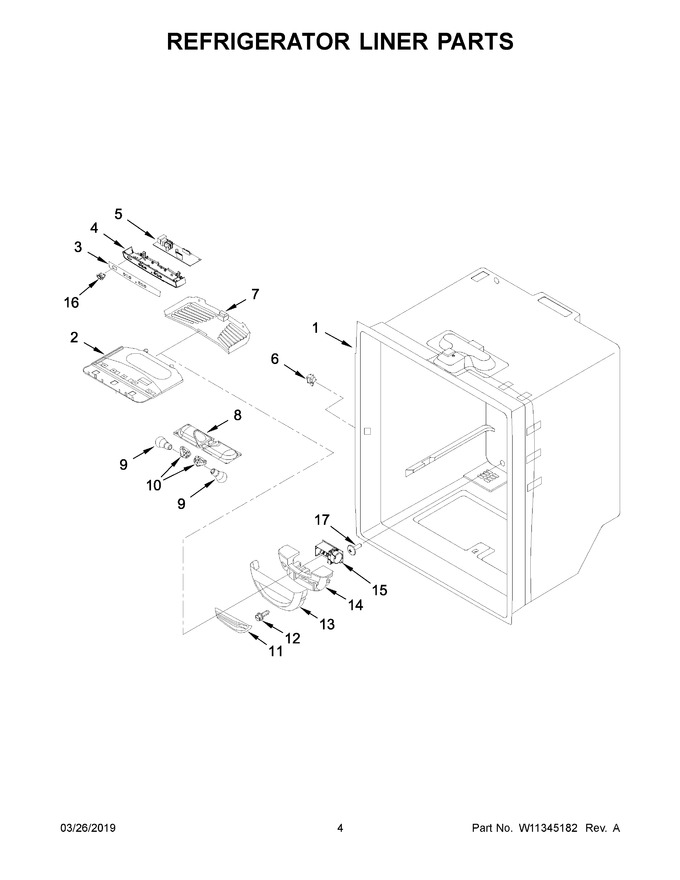

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10464766 | Module, Light |
|
Immediately | $ 108.29 | ||||
| 3 | W11478401 | Overlay, Control (Replaces: W10613576) |
|
Immediately | $ 137.72 | ||||
| 4 | W11478401 | Module, Control (Replaces: W10464775) |
|
Immediately | $ 137.72 | ||||
| 5 | WPW10637328 | Control, Electronic (Replaces: W10637328) |
|
Immediately | $ 297.16 | ||||
| 6 | W11291138 | Switch, Rocker (Replaces: W10847852) |
|
Immediately | $ 36.67 | ||||
| 7 | W11284721 | Cover, Light (Replaces: W11132917) |
|
$ 100.97 | |||||
| 8 | W10443023 | Housing, Light |
|
Immediately | $ 112.13 | ||||
| 9 | W11107911 | Lamp, Led (Replaces: W11038115) |
|
$ 60.25 | |||||
| 10 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 13.21 | ||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
Immediately | $ 8.14 | ||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 12.16 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 113.00 | |||||
| 14 | W11750607 | Insulation, Damper (Replaces: 13012402) |
|
$ 47.76 | |||||
| 15 | WPW10594330 | Damper, Control (Replaces: W10594330) |
|
Immediately | $ 129.62 | ||||
| 16 | W11478401 | Switch, Energy Saver (Replaces: 12861601) |
|
Immediately | $ 137.72 | ||||
| 17 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| NI | W11478401 | Harness, Light (includes Thermistors) (Replaces: W10216622) |
|
Immediately | $ 137.72 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
