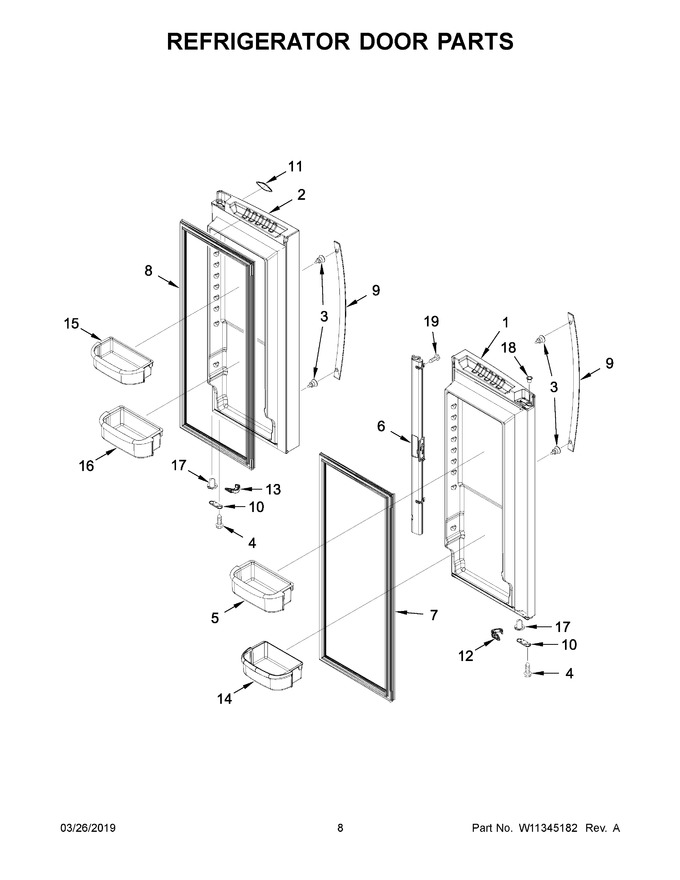

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107886WQ | Door, Refrigerator Left Hand (white) (Replaces: 13107886W) |
|
$ 925.98 | |||||
| 2 | 13107885WQ | Door, Refrigerator Right Hand (white) (Replaces: 13107885W) |
|
$ 965.00 | |||||
| 3 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.85 | ||||
| 4 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 5 | WPW10351081 | Bucket, Small (Replaces: W10351081) |
|
Immediately | $ 73.03 | ||||
| 6 | WP12722803W | Mullion, Door (white) (Replaces: 12722803W) |
|
Immediately | $ 261.21 | ||||
| 7 | W10830287 | Gasket, Door Left Hand (white) |
|
Immediately | $ 173.36 | ||||
| 8 | W10830189 | Gasket, Door Right Hand (white) |
|
Immediately | $ 228.91 | ||||
| 9 | W11127179 | Handle, Door (white) (Replaces: W11101973) |
|
Immediately | $ 181.37 | ||||
| 10 | 12968202W | Stop, Door (white) |
|
$ 65.99 | |||||
| 11 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 83.10 | ||||
| 12 | W10918118 | Latch, Door Closer Left Hand (white) (Replaces: W10833740) |
|
$ 16.20 | |||||
| 13 | W10918120 | Latch, Door Closer Right Hand (white) (Replaces: W10833738) |
|
Immediately | $ 16.20 | ||||
| 14 | WP12918704 | Bucket, Gallon (clear) (Replaces: 12918704) |
|
Immediately | $ 82.88 | ||||
| 15 | WPW10289497 | Bucket, Gallon (Replaces: W10289497) |
|
Immediately | $ 77.23 | ||||
| 16 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 73.55 | ||||
| 17 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 7.76 | ||||
| 18 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 19 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.02 | |||||
| 10A | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.05 | ||||
| 12A | W10918170 | Latch, Door Closer Left Hand (black) (Replaces: W10725268) |
|
$ 16.80 | |||||
| 13A | W10918171 | Latch, Door Closer Right Hand (black) (Replaces: W10725267) |
|
$ 16.77 | |||||
| 17A | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 86.02 | |||||
| 1A | 13107886BQ | Door, Refrigerator Left Hand (black) (Replaces: 13107886B) |
|
$ 963.47 | |||||
| 2A | 13107885BQ | Door, Refrigerator Right Hand (black) (Replaces: 13107885B) |
|
$ 1,072.51 | |||||
| 6A | WP12722803B | Mullion, Door (black) (Replaces: 12722803BN) |
|
Immediately | $ 206.80 | ||||
| 7A | W10830289 | Gasket, Door Left Hand (black) |
|
Immediately | $ 204.87 | ||||
| 8A | W11368721 | Gasket, Door Right Hand (black) (Replaces: W10830206) |
|
Immediately | $ 169.21 | ||||
| 9A | W11123097 | Handle, Door (black) (Replaces: W11101974) |
|
$ 181.37 |
