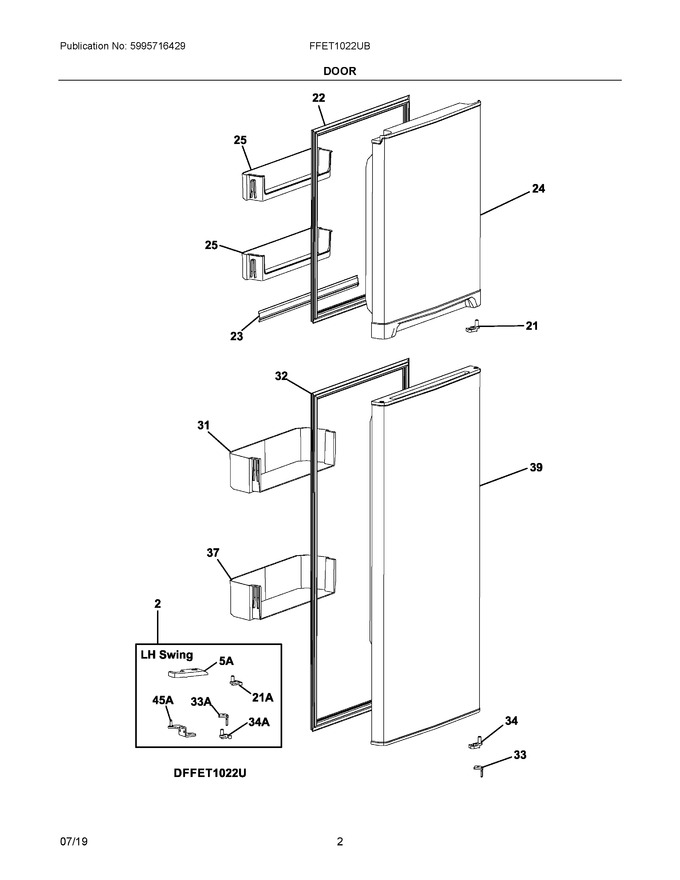

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304522605		Door Reversal Kit, Lh Door Swing, Black, 5 Parts				$ 243.13
21	5304518477		Door Stopper, Freezer Door, Rh Door Swing				$ 23.41
22	4056037585		Gasket, Freezer Door, Black   (Replaces: 5304518550)		Appelez-nous	-
23	5304518479		Gasket, Liner, Freezer Door				$ 56.70
24	5304518549		Door Assembly, Freezer, Black		Appelez-nous	-
25	5304518481		Rack, Freezer Door, (2)			Immediately	$ 226.30
31	5304518482		Rack, Refr Door, Upper			Immediately	$ 189.63
32	5304538406		Gasket, Refr Door, Black   (Replaces: 5304518551)				$ 51.35
33	5304518484		Bracket, Door Closer, Metal, Rh Door Swing				$ 35.74
34	5304518485		Closer, Refr Door, Rh Door Swing			Immediately	$ 64.15
37	5304518486		Rack, Refr Door, Lower			Immediately	$ 210.73
39	5304521338		Door Assembly, Refrigerator, Black		Appelez-nous	-
21A	5304518556		Door Stopper, Freezer Door, Lh Door Swing				$ 20.74
33A	5304518553		Bracket, Door Closer, Metal, Lh Door Swing   (Replaces: 5304518554)				$ 62.19
34A	5304518553		Closer, Refr Door, Lh Door Swing				$ 62.19
45A	5304537118		Door Hinge, Lower, Lh Door Swing   (Replaces: 5304518564)			Immediately	$ 45.55
5A	5304518560		Cover, Upper Hinge, Black, Lh Door Swing		Appelez-nous	-
