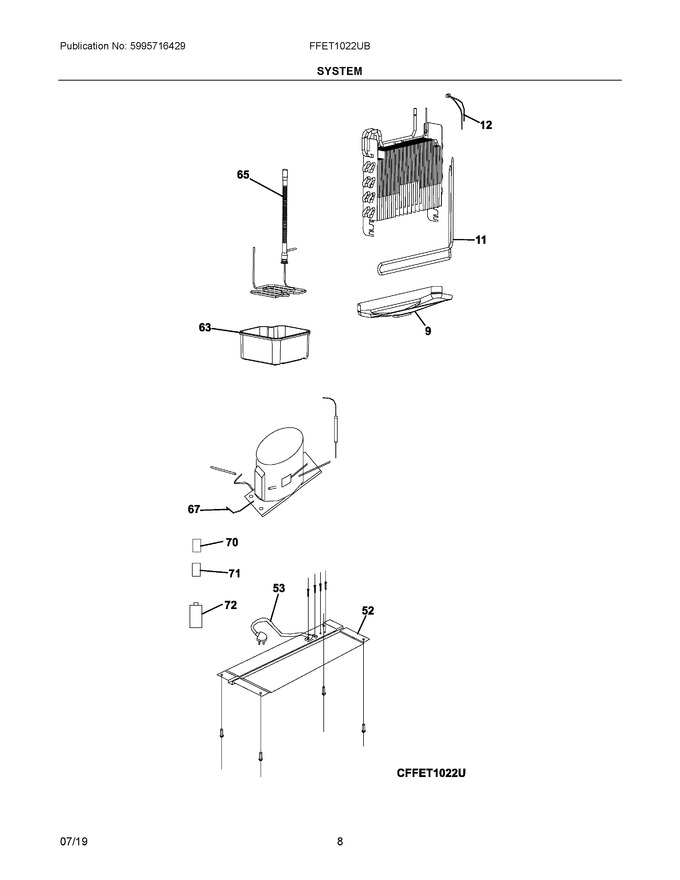

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	5304518519		Drain Trough, Evaporator		Appelez-nous	-
11	5304518520		Heater, Defrost				$ 246.52
12	5304518521		Thermostat, Defrost				$ 121.29
52	5304530328		Base, Compressor, Support   (Replaces: 5304518522)		Appelez-nous	-
53	5304533014		Power Cord   (Replaces: 5304518523)			Immediately	$ 111.78
63	5304518524		Drain Pan				$ 92.95
65	5304518525		Drain Pipe				$ 29.58
67	5304518526		Wire, Grounding			Immediately	$ 33.37
70	5304518527		Protector, Compressor			Immediately	$ 166.09
71	5304518528		Starter, Compressor			Immediately	$ 210.37
72	5304518529		Capacitor, Compressor				$ 167.60
