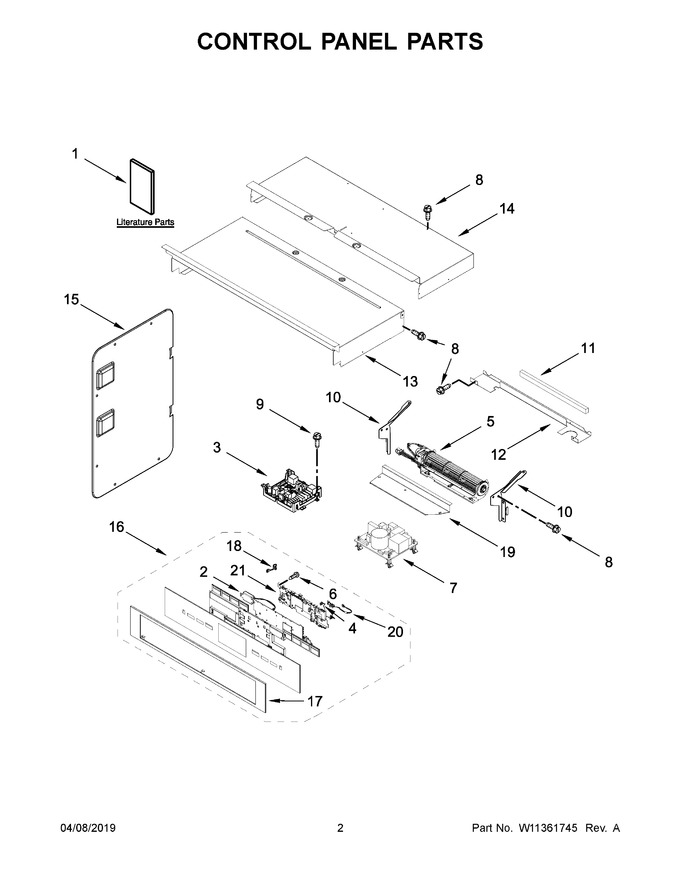

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11235342 | Guide, Use & Care (oven) |
|
- | |||||
| 2 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 80.93 | |||||
| 3 | W11448962 | Appliance Manager, Copernicus (Replaces: W11281214) |
|
Immediately | $ 325.47 | ||||
| 4 | W10524350 | Harness, Keypad (right To Center) |
|
$ 78.21 | |||||
| 5 | W11248652 | Blower (Replaces: W11200129) |
|
Immediately | $ 241.54 | ||||
| 6 | W10489172 | Screw |
|
$ 11.98 | |||||
| 7 | WPW10260060 | Board, Power Supply (Replaces: W10260060) |
|
Immediately | $ 317.35 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 13 | W10318159 | Chassis, Cover Top Front 27 |
|
- | |||||
| 14 | W11037652 | Chassis, Cover Top Back 27" Wifi |
|
- | |||||
| 15 | W10655467 | Chassis, Combo Side |
|
$ 83.02 | |||||
| 16 | W11454130 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W11196777) |
|
- | |||||
| 17 | W11197499 | Skin, Control Panel (stainless) |
|
Immediately | $ 361.78 | ||||
| 18 | W10566973 | Harness, Keypad (left To Center) |
|
$ 82.19 | |||||
| 19 | W10681157 | Cover, Combo Blower |
|
- | |||||
| 20 | W10575307 | Jumper Harness, Power Supply |
|
Immediately | $ 173.84 | ||||
| 21 | W10668510 | Housing |
|
$ 105.17 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11235344 | Guide, Use & Care (oven/micro Combo) |
|
- | |||||
| 1B | W11235622 | Instructions, Installation |
|
- | |||||
| 1C | W10351318 | Instructions, Undercounter Install |
|
- | |||||
| 1D | W11284425 | Sheet, Tech (oven/micro Combo) |
|
- | |||||
| 1E | W11235300 | Diagram, Wiring |
|
- | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | W10874060 | Harness, Inverter |
|
$ 148.71 | |||||
| NI | W11356954 | Harness, Fan & Turntable (Replaces: W10874059) |
|
$ 148.75 | |||||
| NI | W11216677 | Harness, Main |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | W11218145 | Harness, Communication |
|
- | |||||
| NI | W11219538 | Harness, Door Latch |
|
$ 90.67 | |||||
| NI | W11325605 | Jumper Harness, Communication (Replaces: W11198503) |
|
$ 191.19 | |||||
| NI | W11356977 | Harness, Cable Tree Assembly (Replaces: W10889134) |
|
$ 85.07 | |||||
| NI | W11226264 | Strap, Ground |
|
- | |||||
| NI | W11216660 | Harness, Signal |
|
- |
