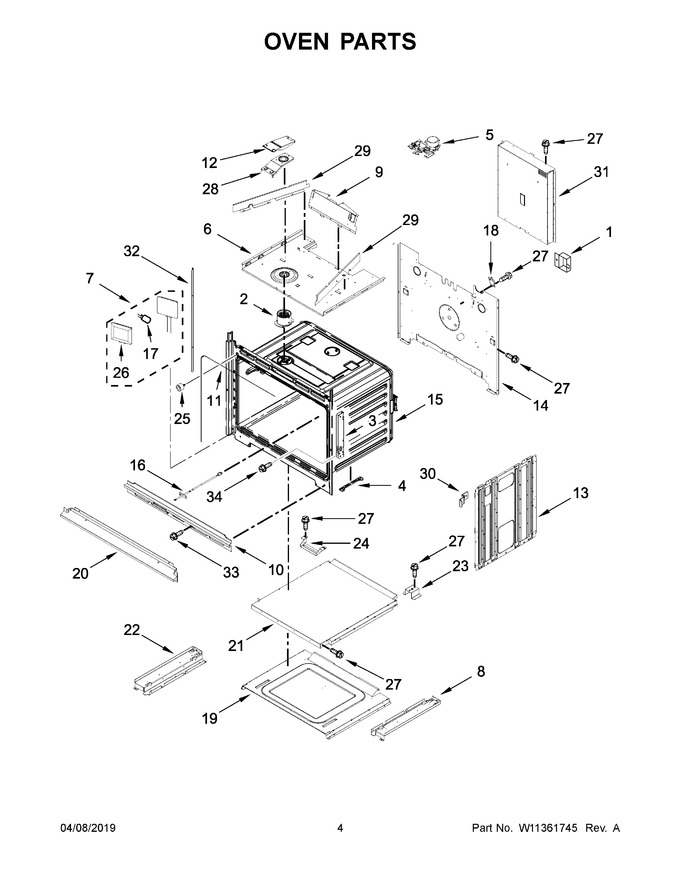

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11819303 | Cover, Connector (Replaces: 8285593) |
|
- | |||||
| 2 | W11240525 | Tube, Vent (Replaces: W11085298) |
|
$ 25.54 | |||||
| 3 | W11613828 | Receiver, Hinge (Replaces: W11044775) |
|
Immediately | $ 57.49 | ||||
| 4 | W11240831 | Spacer, Base (Replaces: W10618102) |
|
$ 17.25 | |||||
| 5 | W10883049 | Latch, Motorized (Replaces: W10618131) |
|
Immediately | $ 306.46 | ||||
| 6 | W10904159 | Chassis, Top |
|
- | |||||
| 7 | W11292252 | Assembly, Oven Light (Replaces: W11205574) |
|
Immediately | $ 107.48 | ||||
| 8 | W10283021 | Support, Base (right) |
|
- | |||||
| 9 | W10904163 | Deflector, Blower |
|
Immediately | $ 169.79 | ||||
| 10 | W11299325 | Vent, Center 27 |
|
- | |||||
| 11 | W10739090 | Gasket, Cavity |
|
$ 135.45 | |||||
| 12 | W10616810 | Cover, Vent Exhaust |
|
$ 69.95 | |||||
| 13 | W10318190 | Side, Chassis |
|
$ 117.20 | |||||
| 14 | W10904162 | Back, Chassis |
|
- | |||||
| 15 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 16 | W11290976 | Probe, Sensor (Replaces: W11208463) |
|
$ 194.82 | |||||
| 17 | WPW10472384 | Bulb, Light (Replaces: W10472384) |
|
Immediately | $ 92.48 | ||||
| 18 | WP4449751 | Thermostat (tod) (Replaces: 4449751) |
|
Immediately | $ 111.84 | ||||
| 19 | W10282901 | Base, Chassis |
|
$ 177.43 | |||||
| 20 | WPW10327376 | Assembly, Bottom Vent (stainless) (Replaces: W10327376) |
|
$ 561.46 | |||||
| 21 | WPW10283008 | Chassis, Bottom Duct (Replaces: W10283008) |
|
$ 220.05 | |||||
| 22 | W10283020 | Support, Base (left) |
|
- | |||||
| 23 | W10213759 | Support, Air Channel |
|
- | |||||
| 24 | W10351308 | Spacer, Chassis Bottom Duct |
|
$ 58.73 | |||||
| 25 | WPW10351278 | Bumper & Screw (Replaces: W10351278) |
|
$ 11.01 | |||||
| 26 | WPW10519866 | Lens, Light (Replaces: W10472386) |
|
$ 96.33 | |||||
| 27 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 28 | W10616809 | Base, Vent Exhaust |
|
$ 32.24 | |||||
| 29 | W10681156 | Deflector, Chassis |
|
- | |||||
| 30 | W10347649 | Spacers, Front |
|
$ 15.02 | |||||
| 31 | W11037653 | Cover, Combo Chassis Back Duct (with Hole) |
|
$ 72.05 | |||||
| 32 | W10536162 | Trim, Side (black (left)) (Replaces: W10344483) |
|
$ 38.73 | |||||
| 33 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 7.55 | ||||
| 34 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 9.22 | |||||
| 32A | W10536162 | Trim, Side (black (right)) (Replaces: W10344482) |
|
$ 38.73 | |||||
| NI | W11688333 | Insulation, Back (Replaces: W10282945) |
|
- | |||||
| NI | W10520716 | Insulation, Wrap |
|
- |
