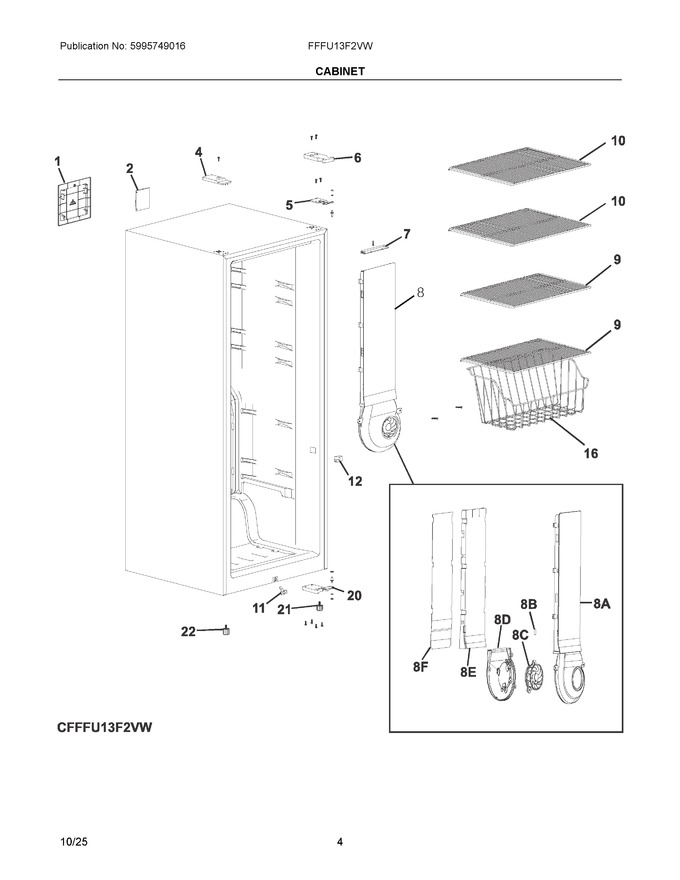

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304534457 | Cover, Pcb (Replaces: 5304521524) |
|
$ 38.52 | |||||
| 2 | 5304537682 | Main Board (Replaces: 5304521525) |
|
Immediately | $ 141.67 | ||||
| 4 | 5304521877 | Screw Cover, Hinge Hole, Upper, Right |
|
$ 40.96 | |||||
| 5 | 5304521526 | Hinge, Upper |
|
$ 84.44 | |||||
| 6 | 5304521527 | Cover Hinge, Upper, Left |
|
$ 52.13 | |||||
| 7 | 5304521557 | Board, Led |
|
Immediately | $ 168.97 | ||||
| 8 | 5304537683 | Freeze, Air Duct, Upper |
|
$ 146.17 | |||||
| 9 | 5304521546 | Shelf, Wire |
|
Immediately | $ 99.16 | ||||
| 10 | 5304521561 | Shelf, Wire, Lower |
|
$ 106.90 | |||||
| 11 | 5304521909 | Light Assembly, Indicator, Power On |
|
$ 31.62 | |||||
| 12 | 5304524331 | Switch, Door |
|
Immediately | $ 65.28 | ||||
| 16 | 5304522724 | Basket, Wire (Replaces: 5304521545) |
|
$ 214.35 | |||||
| 20 | 5304521544 | Hinge, Lower |
|
$ 94.55 | |||||
| 21 | 5304518500 | Foot, Cabinet, White, Adjustable (Replaces: 5304518536) |
|
Immediately | $ 37.58 | ||||
| 22 | 5304518535 | Foot, Cabinet, White |
|
$ 70.23 | |||||
| 8A | 5304534458 | Cover, Air Tower, Upper (Replaces: 5304521552) |
|
$ 45.65 | |||||
| 8B | 5304521553 | Sensor Termateraure, Defrost, Air Duct |
|
$ 75.71 | |||||
| 8C | 5304537684 | Fan, Blower |
|
$ 136.05 | |||||
| 8D | 5304521550 | Cover, Fan |
|
$ 101.17 | |||||
| 8E | 5304521549 | Cover |
|
- | |||||
| 8F | 5304521551 | Insulation |
|
- | |||||
| NI | 5304521559 | Buzzer, Door Alarm |
|
$ 93.26 | |||||
| NIA | 5304521555 | Cover, Lamp |
|
$ 45.55 | |||||
| NIB | 5304521556 | Base, Lamp |
|
Immediately | $ 51.34 |
