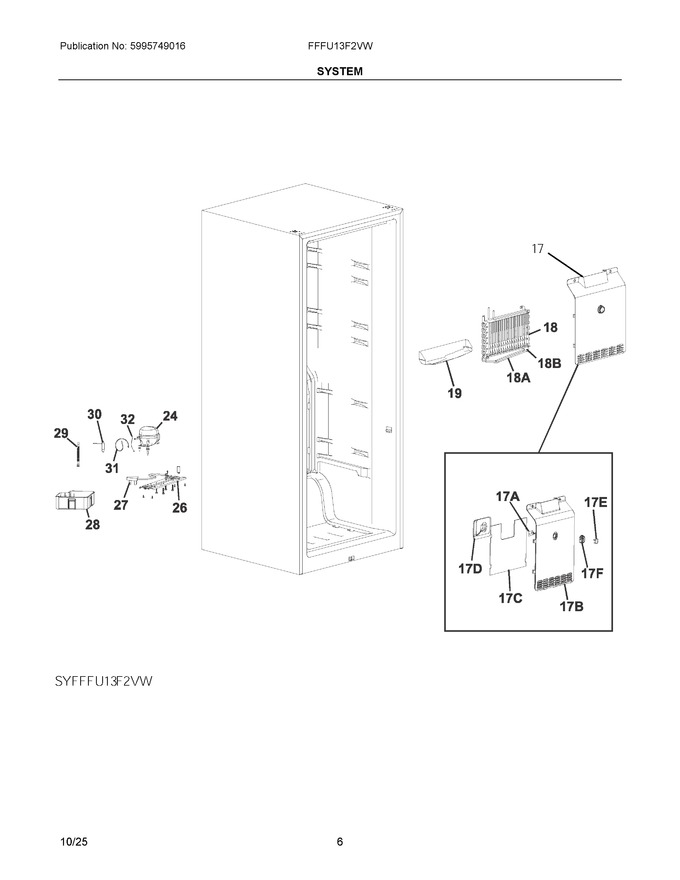

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 17 | 5304521543 | Freezer Air Duct, Lower |
|
- | |||||
| 18 | 5304521536 | Evaporator |
|
$ 174.28 | |||||
| 19 | 5304521535 | Heater Drain |
|
$ 125.97 | |||||
| 24 | 5304529927 | Compressor |
|
Immediately | $ 636.78 | ||||
| 26 | 5304521532 | Base, Compressor |
|
$ 223.92 | |||||
| 27 | 5304533014 | Power Cord (Replaces: 5304518523) |
|
Immediately | $ 111.78 | ||||
| 28 | 5304521531 | Tray, Water |
|
$ 55.38 | |||||
| 29 | 5304521530 | Pipe, Drain, Tube |
|
$ 29.65 | |||||
| 30 | A19676501 | Filter, Dry (Replaces: 5304521529) |
|
Immediately | $ 106.99 | ||||
| 31 | 5304521528 | Pipe, Suction |
|
Immediately | $ 73.84 | ||||
| 32 | 5304518526 | Wire, Grounding |
|
Immediately | $ 33.37 | ||||
| 17A | 5304521542 | Potentiometer |
|
Immediately | $ 137.26 | ||||
| 17B | 5304521541 | Cover, Lower Air Tower |
|
$ 194.47 | |||||
| 17C | 5304521540 | Insulation |
|
$ 70.13 | |||||
| 17D | 5304521539 | Sponge, W/alum Foil |
|
- | |||||
| 17E | 5304521538 | Cover, Knob |
|
$ 35.74 | |||||
| 17F | 5304521537 | Base, Knob |
|
$ 47.66 | |||||
| 18A | 5304521878 | Heater, Defrost |
|
$ 140.63 | |||||
| 18B | 5304521879 | Sensor, Temperature |
|
Immediately | $ 96.53 | ||||
| NI | 5304525382 | Tube, Process |
|
- |
