SELECT A DIAGRAM

01 - Cover Sheet

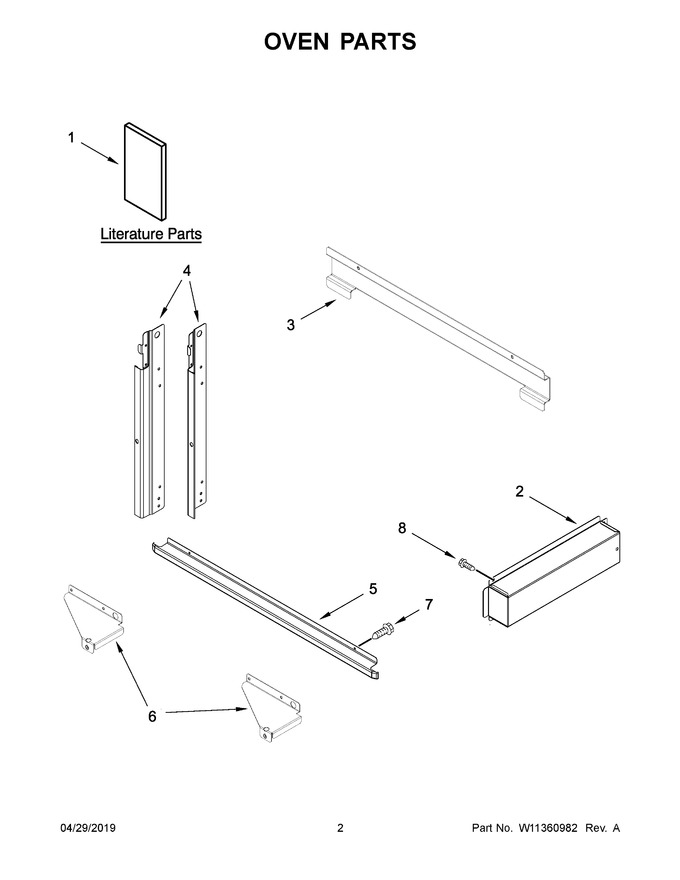

02 - Oven Parts


03 - Control Panel Parts


04 - Microwave Door Parts


05 - Cabinet And Stirrer Parts


06 - Internal Microwave Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11235626		Instructions, Installation		Appelez-nous	-
2	W10239155		Box, Conduit				$ 103.20
3	W11673269		Support, Microwave Module   (Replaces: W10420960)			Immediately	$ 69.92
4	W10416256		Rail, Side (left)				$ 51.61
5	W10420959		Trim, Bottom				$ 215.26
6	W10239158		Bracket, Lower (left)		Appelez-nous	-
7	WP3400832		Screw (black)   (Replaces: 3400832)			Immediately	$ 8.18
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
1A	W11235346		Guide, Use And Care (microwave Oven)		Appelez-nous	-
1B	W11284428		Sheet, Tech		Appelez-nous	-
1C	W11235305		Diagram, Wiring		Appelez-nous	-
4A	W10416255		Rail, Side (right)				$ 47.39
6A	W10239159		Bracket, Lower (right)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11449277		Harness, Interlock   (Replaces: W10720308)			Immediately	$ 156.02
NI	W11356954		Harness, Fan & Turntable   (Replaces: W10874059)				$ 148.75
NI	W10874060		Harness, Inverter				$ 148.71
NI	W11356986		Harness, Communication   (Replaces: W10524303)			Immediately	$ 112.86
NI	W11356977		Harness, Cable Tree Assembly   (Replaces: W10889134)				$ 85.07
NI	W11325605		Jumper Harness, Communication   (Replaces: W11198503)				$ 191.19
NI	4450800		Screw, Grounding				$ 13.47
NI	W11226264		Strap, Ground   (Replaces: W10392129)		Appelez-nous	-
NI	W10760039		Bag, Hardware   (Replaces: W10513362)				$ 12.17
NI	W11356992		Conduit   (Replaces: W10209041)				$ 223.29

    View Diagram in Separate Window       Print Part List
