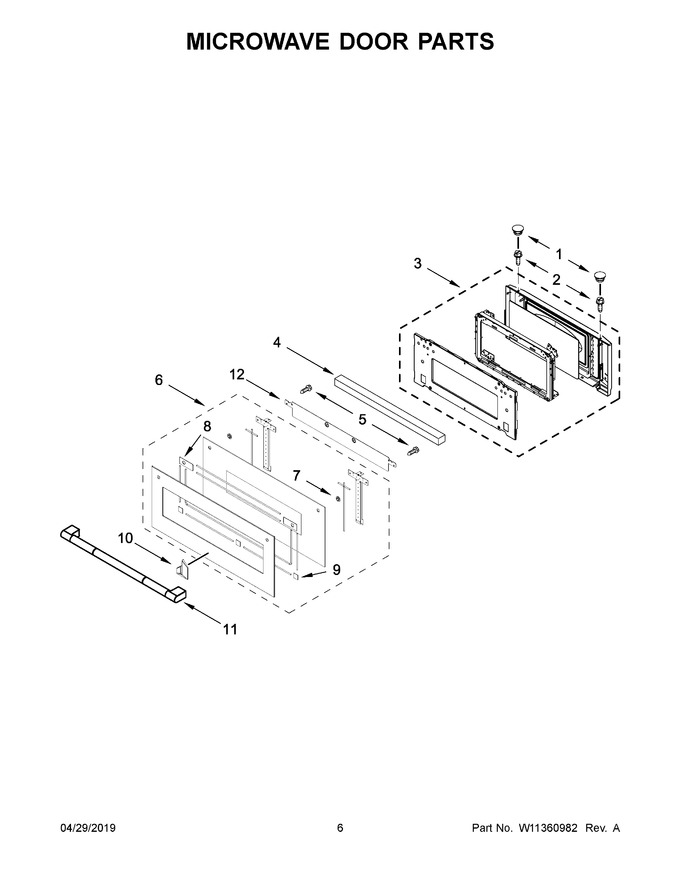

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 11.75
2	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.02
3	W10737653		Assembly, Inner Door				$ 392.22
4	W10359769		Foam, Door Handle				$ 14.06
5	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 7.88
6	W11362191		Assembly, Outer Door (stainless)   (Replaces: W11200399)				$ 501.18
7	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.10
8	W10650497		Spacer, Handle		Appelez-nous	-
9	WPW10517428		Spacer, Vent   (Replaces: W10517428)			Immediately	$ 11.85
10	W11700312		Nameplate (stainless)   (Replaces: W11238658)			Immediately	$ 110.99
11	W11349396		Assembly, Door Handle (stainless)   (Replaces: W11251201)		Appelez-nous	-
12	W11316564		Bracket, Mwo Balancing		Appelez-nous	-
