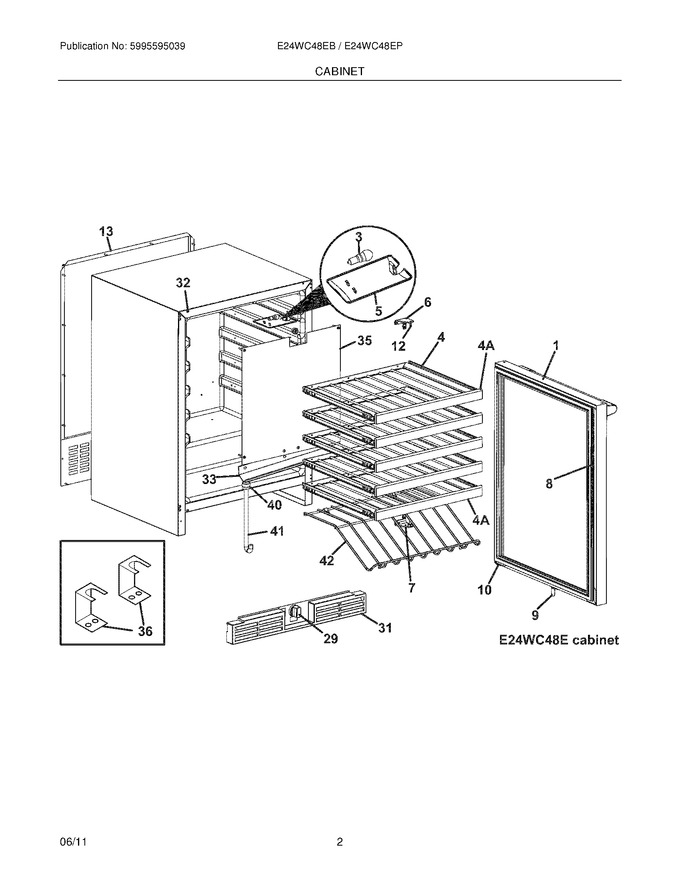

06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5304446585		Lamp,light Bulb				$ 57.57
4	5304446586		Rack,wine		Appelez-nous	-
5	5304446587		Cover,lamp/light		Appelez-nous	-
6	5304446588		Hinge,top		Appelez-nous	-
7	5304446589		Hinge,bottom		Appelez-nous	-
9	5304446592		Bracket,door Switch		Appelez-nous	-
10	5304446593		Plate,hinge Pivot ,door Bottom		Appelez-nous	-
12	5304446594		Pin,pivot Post ,hinge				$ 45.40
13	5304446595		Panel,cabinet Back		Appelez-nous	-
29	5304446608		Knob,temp Control				$ 153.13
31	5304446610		Grille,kick Plate		Appelez-nous	-
32	5304446611		Plug,hinge Holes ,top/bottom		Appelez-nous	-
33	5304446612		Trough,evap Drain		Appelez-nous	-
42	5304446620		Rack,wine Display		Appelez-nous	-
4A	5304446622		Panel,rack Front ,wood		Appelez-nous	-
F1	5304446583		Door Assembly,professional ,with Handle		Appelez-nous	-
F35	5304446613		Evaporator		Appelez-nous	-
F36	5304446614		Bracket,anti-tip		Appelez-nous	-
F40	5304446618		Drain Cup		Appelez-nous	-
F41	5304446619		Tube,drain		Appelez-nous	-
F8	5304446591		Gasket,door ,gray				$ 296.17
FNI	5304461819		Receptacle,lamp Socket		Appelez-nous	-
NI	5304446590		Door Closer				$ 125.69
