01 - Cover
03 - Cabinet
05 - System
06 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

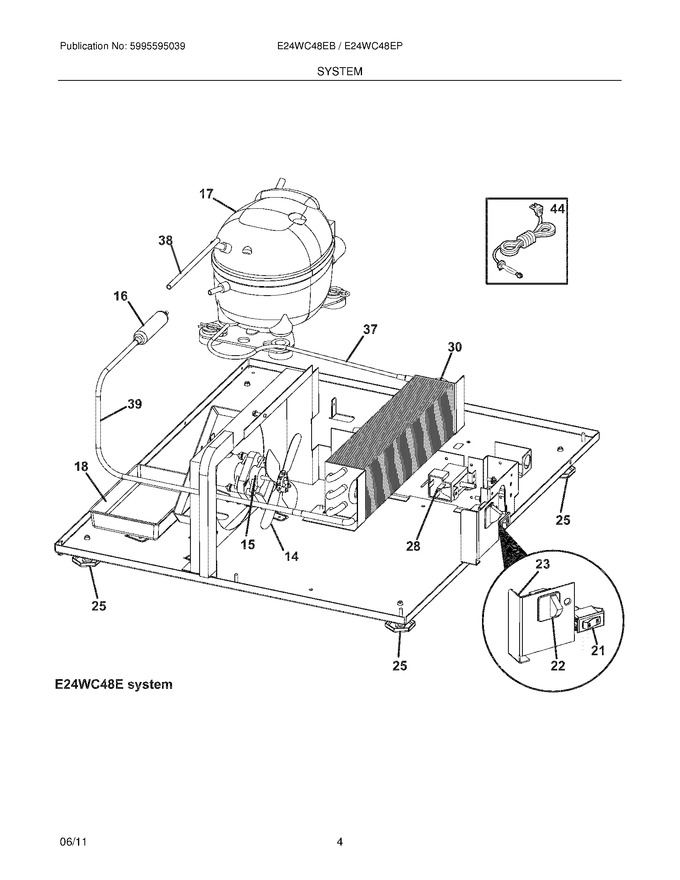

| 18 | 5304446602 | Pan,drain |
|
- | |||||
| 23 | 5304446682 | Bracket,door Switch Mtg |
|
- | |||||
| 25 | 5304446606 | Leveling Leg,screw |
|
- | |||||
| F14 | 5304446597 | Fan Blade,condenser |
|
- | |||||
| F15 | 5304484385 | Motor,condenser Fan |
|
- | |||||
| F16 | 5304446598 | Drier-filter |
|
- | |||||
| F17 | 5304446599 | Compressor |
|
$ 1,531.52 | |||||
| F21 | 5304446603 | Switch,light ,rocker |
|
$ 86.64 | |||||
| F22 | 5304446605 | Switch,light ,door Actuated |
|
$ 87.69 | |||||
| F28 | 5304446607 | Control,temperature |
|
$ 431.64 | |||||
| F30 | 5304446609 | Condenser |
|
- | |||||
| F37 | 5304446615 | Tube,discharge |
|
- | |||||
| F38 | 5304446616 | Tube,process |
|
- | |||||
| F39 | 5304446617 | Tube,connection |
|
- | |||||
| F44 | 5304446621 | Power Cord,electric Svce |
|
- | |||||
| FNI | 5304446604 | Wire,jumper ,door Switch |
|
- | |||||
| FNI | 5304446600 | Overload Protector,compressor |
|
- | |||||
| FNI | 5304446601 | Wire,compressor |
|
- | |||||
| FNI | 5304446681 | Relay,compressor |
|
- |
