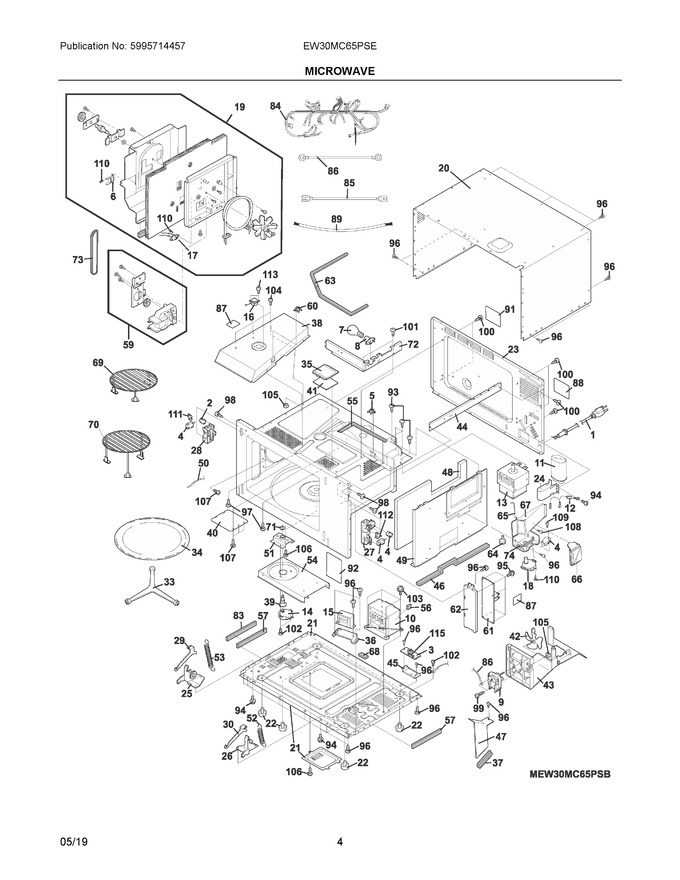

03 - Microwave


04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304470537		Power Cord, Electric				$ 130.13
2	5304503483		Switch, Monitor, W/ceramic Fuse				$ 39.38
3	5304498734		Filter, Noise, W/fuse Mount			Immediately	$ 57.49
4	5304493153		Switch, Interlock, Door Sensor			Immediately	$ 92.64
5	5304480634		Fuse, Cavity Temp				$ 59.38
6	5304503729		Thermal Cut-out, Convctn, 150 C				$ 273.26
7	5304464198		Lamp, Oven Light			Immediately	$ 43.38
8	5304463785		Lampholder, Socket				$ 48.04
9	5304461119		Motor, Fan				$ 477.07
10	5304470538		Transformer, Power				$ 409.50
11	5304470539		Capacitor, High Voltage				$ 161.96
12	5304531883		Rectifier Assembly, High Voltage   (Replaces: 5304480635)				$ 39.63
13	5304501808		Magnetron			Immediately	$ 277.46
14	5304498736		Motor, Turntable				$ 116.24
15	5304470541		Transformer, Low Voltage				$ 250.16
16	5304513871		Sensor Assembly, Ah				$ 76.31
17	5304518629		Thermistor		Appelez-nous	-
18	5304485889		Motor, Damper				$ 59.75
19	5304503730		Convection Fan Assembly				$ 326.81
20	5304470542		Cabinet, Outer Casing				$ 245.24
21	5304470734		Base, Chassis, W/motor Cover		Appelez-nous	-
22	5304461127		Foot, Cabinet, (4)				$ 15.54
23	5304498738		Panel, Cabinet Back		Appelez-nous	-
24	5304498739		Holder, Capacitor		Appelez-nous	-
25	5304480638		Hinge, Oven, Lh				$ 184.85
26	5304480639		Hinge, Oven, Rh				$ 185.56
27	5304470547		Latch Hook, Right Side			Immediately	$ 57.02
28	5304470548		Latch Hook, Left Side			Immediately	$ 56.70
29	5304480640		Cam, Door, Lh				$ 94.78
30	5304480641		Cam, Door, Rh			Immediately	$ 129.33
33	5304501830		Support, Turntable, With Rollers				$ 122.62
34	5304518632		Tray, Turntable				$ 234.68
35	5304461155		Frame, Light Lens		Appelez-nous	-
36	5304470564		Bracket, Mounting, Transformer		Appelez-nous	-
37	5304461157		Cushion		Appelez-nous	-
38	5304461158		Duct Assembly, Steam Release		Appelez-nous	-
39	5304480644		Coupling, Turntable				$ 154.22
40	5304461165		Cover, Waveguide				$ 258.88
41	5304461167		Lens, Light		Appelez-nous	-
42	5304461173		Blade, Fan				$ 49.61
43	5304461174		Duct, Cooling Fan		Appelez-nous	-
44	5304461175		Support, Chassis		Appelez-nous	-
45	5304461178		Bracket, Noise Filter, Angle		Appelez-nous	-
46	5304461156		Cushion		Appelez-nous	-
47	5304461181		Guide, Air, Magnetron		Appelez-nous	-
48	5304461182		Sheet, Thermal, Protection		Appelez-nous	-
49	5304461183		Cover, Thermal Sheet, Panel		Appelez-nous	-
50	5304513872		Wiring Harness, Thermistor		Appelez-nous	-
51	5304451459		Bracket, Turntable Mount		Appelez-nous	-
52	5304503731		Spring, Door, Rh				$ 77.96
53	5304503732		Spring, Door, Lh				$ 74.99
54	5304470576		Insulator, Thermal Barrier		Appelez-nous	-
55	5304483931		Cushion		Appelez-nous	-
56	5304461180		Cushion		Appelez-nous	-
57	5304483932		Cushion		Appelez-nous	-
59	5304494061		Motor Assembly, Converction Fan		Appelez-nous	-
60	5304461114		Thermal Cut-out, Oven, 170 C				$ 201.92
61	5304513875		Board, Power				$ 332.55
62	5304470735		Holder, Power Board				$ 51.98
63	5304482055		Cushion, Side		Appelez-nous	-
64	5304461159		Cam, Damper		Appelez-nous	-
65	5304461160		Shaft, Damper		Appelez-nous	-
66	5304461161		Door Assembly, Damper				$ 81.90
67	5304461162		Duct, Damper		Appelez-nous	-
68	5304461163		Cushion		Appelez-nous	-
69	5304498741		Rack Assembly, Broiling Trivet, Low		Appelez-nous	-
70	5304498742		Rack Assembly, Baking, High		Appelez-nous	-
71	5304451470		Packing, Silicon				$ 57.83
72	5304480654		Guide, Air, Rh		Appelez-nous	-
73	5304461177		Belt, Convection Fan				$ 93.71
74	5304461179		Cushion, Damper Duct		Appelez-nous	-
83	5304480655		Cushion		Appelez-nous	-
84	5304513873		Harness, Wiring, Main		Appelez-nous	-
85	5304440331		Wire, High Voltage-a		Appelez-nous	-
86	5304461199		Wire, Ground, Cooling Fan				$ 28.35
87	5304483935		Label, Caution		Appelez-nous	-
88	5304465314		Label, Nhw Caution		Appelez-nous	-
89	5304513874		Harness, Wiring, Psu To Cpu		Appelez-nous	-
90	5304451534		Label, User Caution, French				$ 3.94
91	5304440333		Label, Caution-dhhs		Appelez-nous	-
92	5304504050		Label, Menu		Appelez-nous	-
93	5303319636		Screw, (5)		Appelez-nous	-
94	5304451550		Screw, 4 Mm X 8 Mm		Appelez-nous	-
95	5304502863		Screw, 4 Mm X 8 Mm, Chromium   (Replaces: 5304451552)				$ 12.05
96	5304451553		Screw, 4 Mm X 12 Mm				$ 14.89
97	5304461203		Screw, 4mm X 10mm, (6)		Appelez-nous	-
98	5303319641		Screw, (2)				$ 14.18
99	5304461209		Screw, 4mm X 25mm, (2)		Appelez-nous	-
100	5304470587		Screw		Appelez-nous	-
101	5304461215		Screw, 4mm X 8mm, (2)		Appelez-nous	-
102	5304470588		Screw				$ 11.03
103	5304461221		Screw, 6mm X 14mm, (4)		Appelez-nous	-
104	5304451548		Screw, 4 Mm X 8 Mm		Appelez-nous	-
105	5304470590		Nut, Special		Appelez-nous	-
106	5304450253		Screw, 4 Mm X 8 Mm				$ 14.89
107	5304461210		Screw, 4mm X 6mm, (3)		Appelez-nous	-
108	5304461204		Screw, 4mm X 8mm, (2)		Appelez-nous	-
109	5304461208		Screw, 3mm X 14mm		Appelez-nous	-
110	5304461216		Screw, 3mm X 6mm		Appelez-nous	-
111	5304470591		Lever, Switch Actuator, Left				$ 61.86
112	5304470592		Lever, Switch Actuator, Right				$ 51.79
113	5304483938		Screw, (2)		Appelez-nous	-
114	5304440346		Label, User Caution				$ 38.59
115	5304498734		Dummy Fuse   (Replaces: 5304483939)			Immediately	$ 57.49
