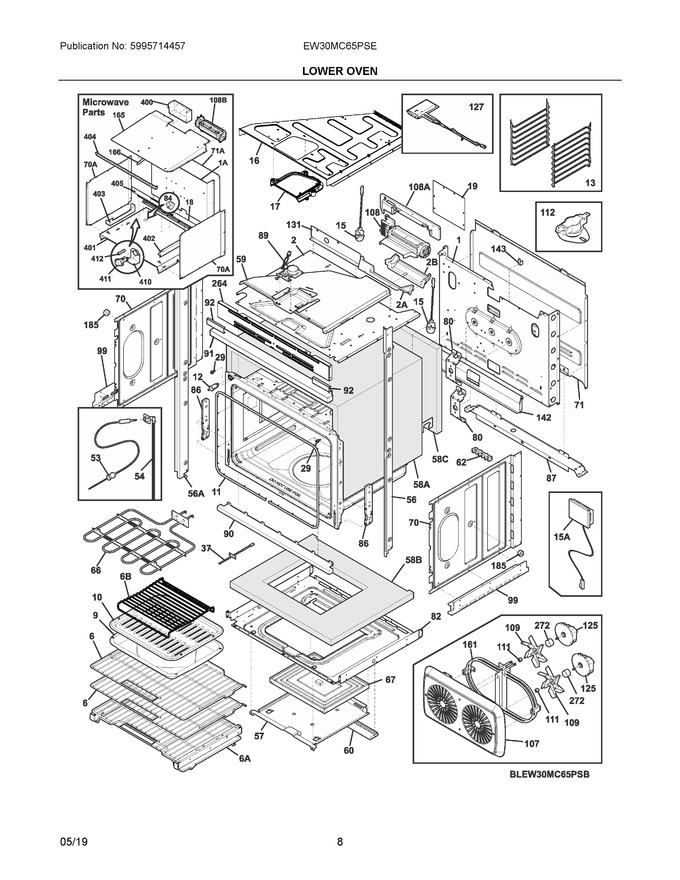

04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	139017305		Panel, Main Back, Lower Oven		Appelez-nous	-
2	139028101		Shield, Insulation, Top, Lower Oven		Appelez-nous	-
6	808713913		Rack Assembly, Ladder, Cobalt, W/handle   (Replaces: 808713914)				$ 159.86
9	316081901		Pan, Broiler, Cobalt Blue				$ 82.58
10	316082001		Insert, Broiler Pan, Cobalt Blue				$ 58.99
11	807545504		Seal, Oven Door, Gray				$ 41.29
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 48.93
13	808713901		Ladder Assembly, Kit, Nickel, W/2 Ladders				$ 167.74
15	5304528790		Lamp Assembly, Round, Halogen, W/lens, W/bulb   (Replaces: 139009000)			Immediately	$ 22.84
16	139024201		Duct, Cooling, Xflow		Appelez-nous	-
17	139038501		Duct, Suction Bypass, 2 Channel		Appelez-nous	-
18	5304503645		Shield, Fan		Appelez-nous	-
19	5304503412		Plate, Duct, Xflow		Appelez-nous	-
29	316517601		Bumper, Main Front, Cobalt Blue		Appelez-nous	-
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 53.48
53	5304503737		Probe, Meat, Black   (Replaces: 5304516490)				$ 110.37
54	139017203		Receptacle Assy, Meat Probe   (Replaces: 5304514886)			Immediately	$ 170.10
56	808804405		Trim, Side, Stainless, Rh		Appelez-nous	-
57	807988901		Panel, Service, Bake Element		Appelez-nous	-
59	139015700		Duct, Cooling, Lower Oven		Appelez-nous	-
60	807285601		Shield, Heat, Oven Bottom		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 29.66
66	5304521861		Element, Broil, 8 Pass, 4000w   (Replaces: 139000900)			Immediately	$ 100.28
67	318601604		Element, Hidden Bake, 2000w   (Replaces: 808650402)			Immediately	$ 289.31
70	139000601		Shield, Insulation, Sides, (2)				$ 80.05
71	139020000		Shield, Rear Wire, Main Back				$ 110.25
80	139021101		Bracket, Support, Chassis/fan				$ 16.54
82	807988802		Shield, Insulation, Lower				$ 111.99
84	5304514360		Outlet, Electrical, Miniature, Black, W/harness		Appelez-nous	-
86	139026900		Receptacle, Hinge, Dual Spring				$ 36.23
87	139020100		Bracket, Cable Mtg.		Appelez-nous	-
89	139021302		Motor, Latch Assy., 2 Pole				$ 163.96
90	318903514		Trim, Oven Bottom, Stainless				$ 354.74
91	808804802		Trim, Decorative, Black, Middle				$ 212.63
92	807804801		End Cap, Middle Trim, Stainless, (2)				$ 202.71
99	318256201		Bracket, Side, Bottom, (2)				$ 63.00
107	139001502		Cover, Dual Fan, Cobalt, Convection				$ 80.00
108	139038301		Blower Assembly, Cooling, Cross Flow, W/baffle				$ 188.21
109	318398302		Blade, Fan, Convection   (Replaces: 139009100)			Immediately	$ 32.34
111	316136600		Nut, Fan Retainer			Immediately	$ 21.26
112	5304494446		Switch, Thermal Cutoff, 145c				$ 48.04
125	139008502		Motor, Convection Fan				$ 154.98
127	807123501		Catalyst, Oven Vent		Appelez-nous	-
131	139022400		Cover, Center Rear, Cross Flow		Appelez-nous	-
142	139018000		Shield, Air Deflector, Main Back		Appelez-nous	-
143	318172904		Bracket, Wire Support		Appelez-nous	-
161	5304522063		Element, Convection, Dual, 2500w   (Replaces: 139006600)				$ 147.46
165	318381740		Shield, Heat, Base		Appelez-nous	-
166	318577001		Deflector, Divider		Appelez-nous	-
185	318531800		Spacer, Oven Shield, (2)				$ 14.18
264	807804602		Trim, Vent, Black, Center				$ 192.15
272	139021700		Tube, Convection Fan				$ 19.69
400	318576901		Box, Cooling Duct		Appelez-nous	-
401	5304503654		Plate, Support, Microwave		Appelez-nous	-
402	318406714		Bracket, Attachment		Appelez-nous	-
403	318407603		Bracket, Attachment		Appelez-nous	-
404	5304503653		Trim, Top Vent, Black				$ 106.32
405	5304502990		Panel, Back Filler		Appelez-nous	-
410	318933901		Bracket, Fuse		Appelez-nous	-
412	318647300		Fuse, 20 Amp   (Replaces: 318576100)			Immediately	$ 241.92
108A	139023900		Bracket, Fan Mtg., Cross Flow				$ 35.44
108B	318073038		Motor, Blower				$ 285.08
15AA	139001800		Lamp Assembly, Halogen, 26" Harness, W/g9 40w Bulb				$ 124.22
1A	318259215		Back, Main, Upper Oven		Appelez-nous	-
2A	139015900		Shield, Fan, Cross Flow		Appelez-nous	-
2B	139038901		Housing, Fan, Air Diverter				$ 34.65
411A	318647300		Holder, Fuse   (Replaces: 318576200)			Immediately	$ 241.92
56A	808804406		Trim, Side, Stainless, Lh		Appelez-nous	-
58A	139001700		Insulation, Oven Wrapper, Top & Sides		Appelez-nous	-
58B	807989001		Insulation, Oven Bottom				$ 102.78
58C	139021400		Insulation, Oven Back		Appelez-nous	-
6A	808713906		Glide Rack, Assembly, Cobalt, W/handle				$ 232.47
6B	318219500		Rack, Broiler Pan		Appelez-nous	-
70A	807119201		Panel, Side, (2)		Appelez-nous	-
71A	807119501		Panel, Back, Microwave		Appelez-nous	-
NI	5304517285		Harness Assembly, Filter, Electrical, W/capacitors				$ 42.98
NI	5304470882		Screw, Anti-tip, 8 - 5/8, Black, (2)				$ 14.96
NI	318165800		Spacer, Glass, Foam				$ 19.69
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 17.69
NI	5304517372		Harness-main E 30 Mc Es700		Appelez-nous	-
NI	5304517369		Harness, Wiring, Mdl Ads		Appelez-nous	-
NI	5304506955		Box & Wires Assy   (Replaces: 318394443)				$ 193.81
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 10.24
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 6.30
NIA	5303288566		Screw, 8 X 1/4, (4)   (Replaces: 5303323130)				$ 2.36
NIA	318946500		Bulb, Halogen, G9, 25w, 120v			Immediately	$ 67.15
NIA	5303288566		Screw, Tr Hd Sqd Ab, 8-18 X 0.25, (8)				$ 2.36
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
NIA	139022101		Insualtion, Noise Dampening		Appelez-nous	-
NIA	318579001		Bracket, Wire				$ 11.08
NIA	318946400		Bulb, Halogen, G9, 40w, 120v			Immediately	$ 54.80
NIB	318231870		Wiring Harness, Bake Element				$ 92.69
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 12.60
NIBA	316021119		Screw, Ab Nickel, 8-18 X 11/16		Appelez-nous	-
