SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Deli, Shelves & Crisper Assy


04 - Drain, Rollers & Evap Assy


05 - Evaporator Fan Shroud & Motor Assemblies


06 - Facade Dispenser Cover, & Elec Brkt Assy


07 - Freezer Door


08 - Freezer Shelves And Lights


09 - Ice Bucket Auger & Ice Maker Parts


10 - Ice Maker/control Assy


11 - Machine Compartment


12 - Miscellaeous Information


13 - Refrigerator Door, Trim And Handles


14 - Refrigerator/freezer Lights & Hinges


15 - Refrigerator/freezer Panels & Trim


16 - Water Filter Assy

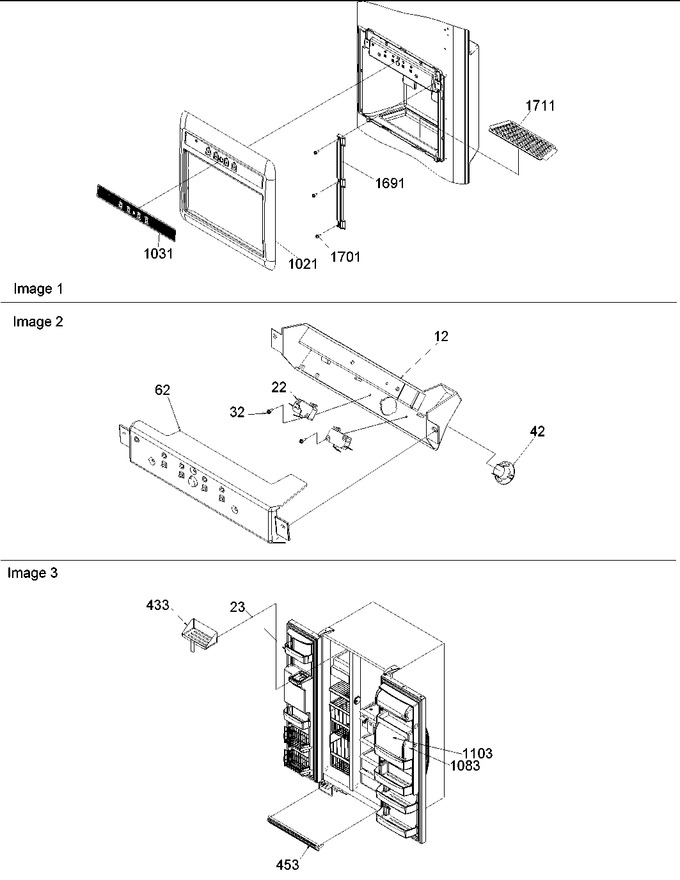

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	10323308		Bracket,elec Mntg		Appelez-nous	-
22	12419601		Switch, Limit		Appelez-nous	-
23	12311806		Shelf, Fz Door		Appelez-nous	-
32	M0229005		Screw K		Appelez-nous	-
42	10131702		Socket, Light		Appelez-nous	-
62	12513302		Assy,facade Control		Appelez-nous	-
433	10870802		Shelf, Ice Cream		Appelez-nous	-
453	12321807Q		Assy, Toe Grille (white)				$ 136.91
NI	12313702		Assy, Chiller Frame				$ 33.77
NI	12335602		Extension, Cavity		Appelez-nous	-
NI	12508201W		Insert,facade(white)		Appelez-nous	-
NI	12502001W		Grille,sump(white)		Appelez-nous	-
NI	12501901W		Facade,dispenser(white)		Appelez-nous	-
NI	M0216517		Screw		Appelez-nous	-
NI	12313902		Door, Chiller		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
