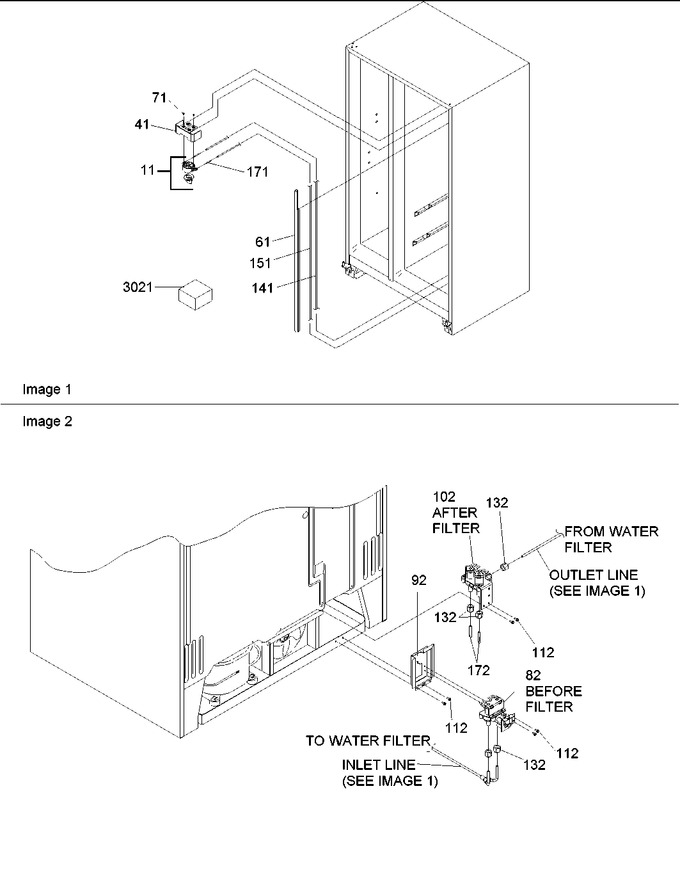

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	R0000009		Head/bypass Assy   (Replaces: 12319904)				$ 119.93
41	12445402		Cover, Water Filter-e Ct		Appelez-nous	-
61	12421801		Cover, Waterline		Appelez-nous	-
71	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.00
82	WP12544001		Valve, Water   (Replaces: 12313403)			Immediately	$ 249.93
92	12236001		Plate-water Valve		Appelez-nous	-
102	WP12544101		Valve, Secondary Water   (Replaces: 12313404)				$ 221.83
112	681390		Screw   (Replaces: M0251015)				$ 13.06
132	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 10.97
141	WP12544001		Valve See Letter F889-b   (Replaces: Y12445301)			Immediately	$ 249.93
151	12319001		Line,filter Outlet To I/m 110``		Appelez-nous	-
171	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 7.82
172	A1055105		Spring, Anti Kink		Appelez-nous	-
NI	12527301		Filter, Water		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
