View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

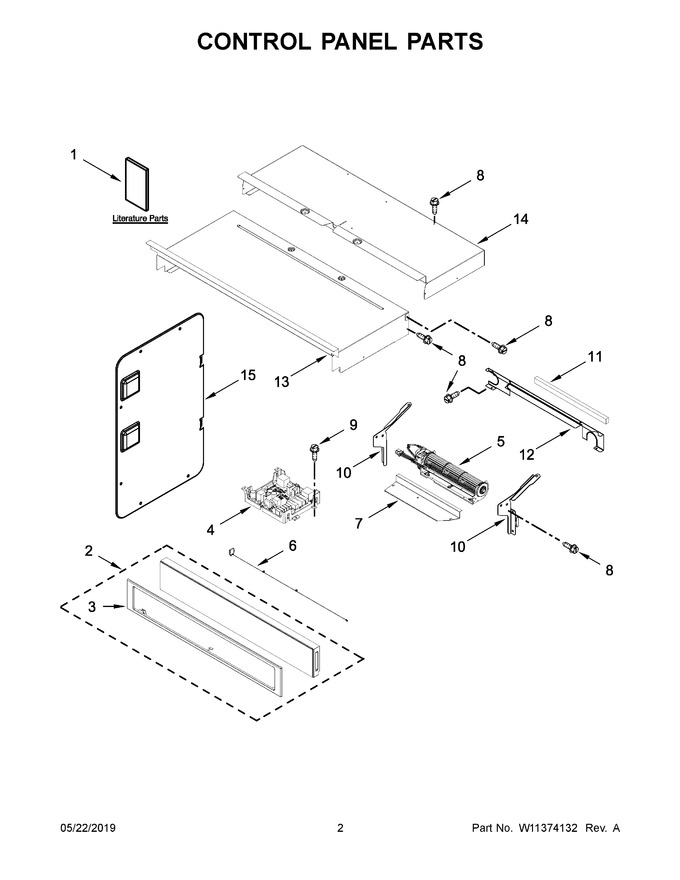

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11129957 | Instructions, Installation |
|
- | |||||
| 2 | W11290642 | Assembly, Control Panel (includes Overlay) (black) (Replaces: W11105015) |
|
Immediately | $ 858.53 | ||||
| 3 | W11115276 | Skin, Control Panel (black) (Replaces: W11026968) |
|
- | |||||
| 4 | W11261167 | Appliance Manager, Copernicus (Replaces: W11253187) |
|
Immediately | $ 472.23 | ||||
| 5 | W11248652 | Blower (Replaces: W11200129) |
|
Immediately | $ 241.54 | ||||
| 6 | W11537624 | Antenna (Replaces: W11234541) |
|
$ 106.06 | |||||
| 7 | W10681157 | Cover, Combo Blower |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | W10618126 | Chassis, Back Divider |
|
- | |||||
| 13 | W10318159 | Chassis, Cover Top Front 27 |
|
- | |||||
| 14 | W11037652 | Chassis, Cover Top Back 27" Wifi |
|
- | |||||
| 15 | W10655467 | Chassis, Combo Side |
|
$ 83.02 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11220320 | Guide, Use & Care (oven) |
|
- | |||||
| 1B | W11108508 | Guide, Use & Care (microwave Oven) |
|
- | |||||
| 1C | W11129946 | Sheet, Tech |
|
- | |||||
| 1D | W11097305 | Guide, Internet Connectivity |
|
- | |||||
| 2A | W11367343 | Assembly, Control Panel (includes Overlay) (white) (Replaces: W11105012) |
|
$ 835.54 | |||||
| 2B | W11367329 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W11105014) |
|
Immediately | $ 834.78 | ||||
| 3A | W11200664 | Skin, Control Panel (white) (Replaces: W11026967) |
|
- | |||||
| 3B | W11112611 | Skin, Control Panel (stainless) (Replaces: W10899876) |
|
- | |||||
| NI | W10760039 | Bag, Hardware (Replaces: W10431303) |
|
$ 12.17 | |||||
| NI | W11356991 | Harness, Ground Console Combo |
|
- | |||||
| NI | W11356977 | Harness, Cable Tree Assembly |
|
$ 85.07 | |||||
| NI | W11132989 | Harness, Door Latch |
|
$ 118.98 | |||||
| NI | W11356990 | Harness, Communication |
|
$ 224.43 | |||||
| NI | W11356970 | Harness, Interlock |
|
$ 165.38 | |||||
| NI | W11356968 | Harness, Inverter |
|
$ 153.25 | |||||
| NI | W11356954 | Harness, Fan And Turntable |
|
$ 148.75 | |||||
| NI | W11317200 | Harness, Signal |
|
- | |||||
| NI | W11316032 | Harness, Main |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11325605 | Jumper Harness, Communication (Replaces: W11356987) |
|
$ 191.19 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 21.41 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 |
