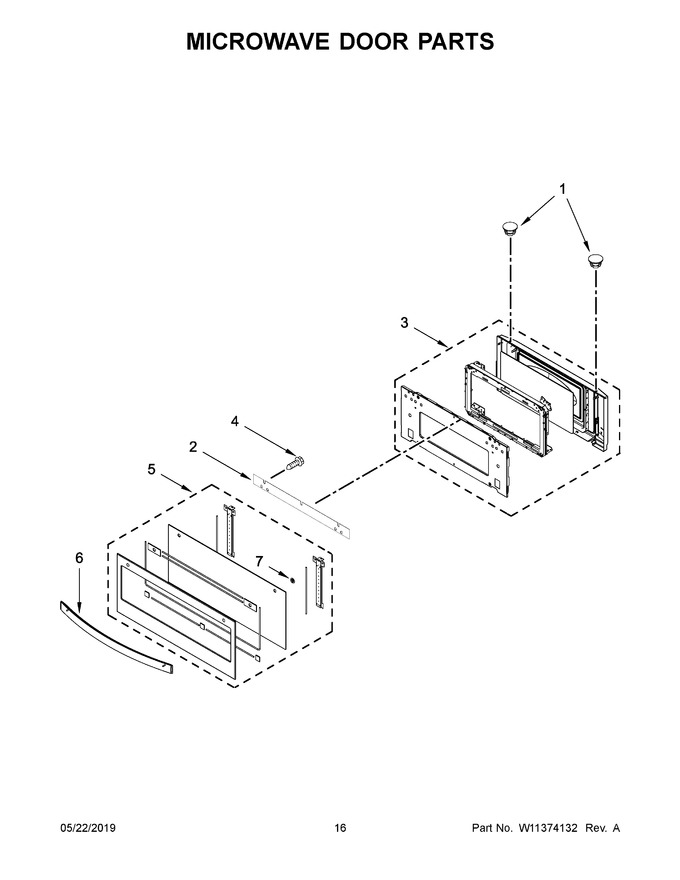

09 - Microwave Door Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 12.34
2	W10359769		Foam, Door Handle				$ 14.76
3	W10737653		Assembly, Inner Door				$ 411.83
4	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 8.27
5	W10866277		Assembly, Outer Door (black)		Appelez-nous	-
6	W11115278		Handle, Door (black)   (Replaces: W11022641)				$ 188.91
7	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.81
5A	W11203367		Assembly, Outer Door (white)   (Replaces: W10866278)		Appelez-nous	-
5B	W11111744		Assembly, Outer Door (stainless)   (Replaces: W10866276)				$ 403.99
6A	W11200667		Handle, Door (white)   (Replaces: W11022642)		Appelez-nous	-
6B	W11113204		Handle, Door (stainless)   (Replaces: W10880280)				$ 188.91
